Charging station with Type 2 socket, 3 phases, 22 kW

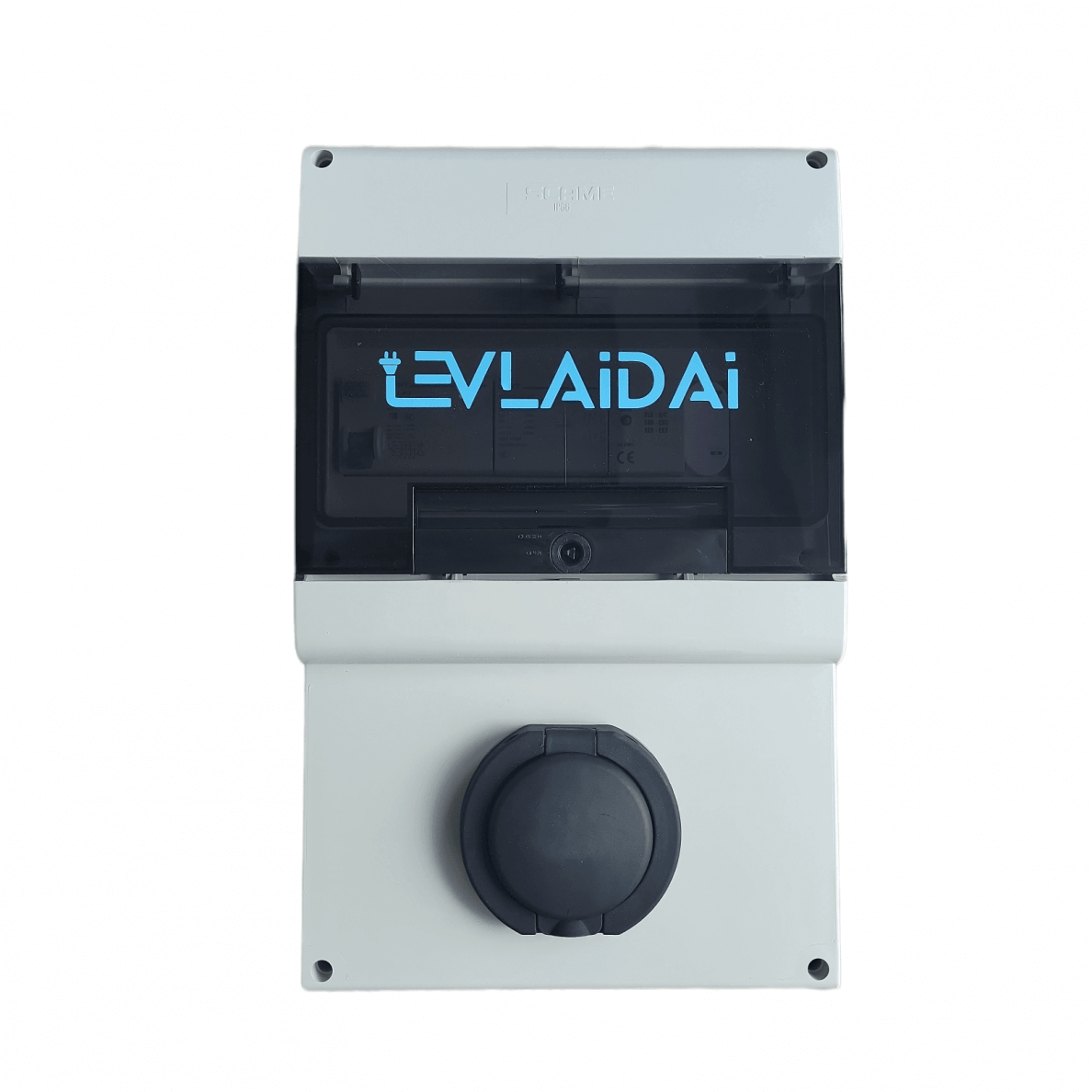

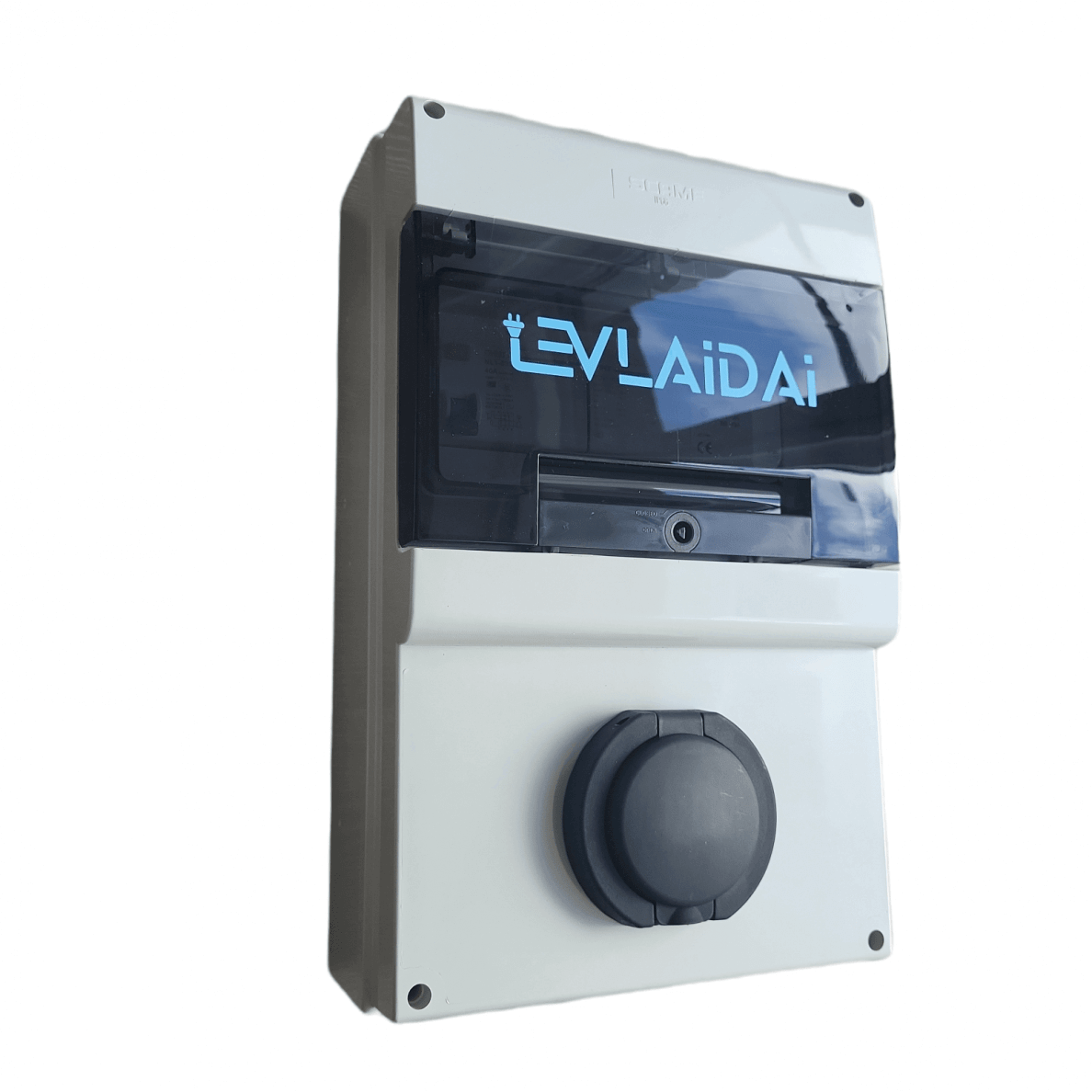

Wallbox Charging Station (Type 2, 3-Phase, 22 kW)

Discover our top-of-the-line Wallbox charging station, expertly designed for all electric vehicles and plug-in hybrids. This charging station incorporates high-quality components from ABB, Schneider, and Hager, along with a locally manufactured OpenEVSE controller, ensuring reliable and safe charging.

Key Features:

• Adjustable Charging Current: Ranges from 10A to 32A (4 kW to 22 kW).
• Type 2 Socket: Fully compatible with a wide variety of electric vehicles.
• Durability Standards:
  • IP66 for dust and water resistance.
  • IK07 for impact protection.

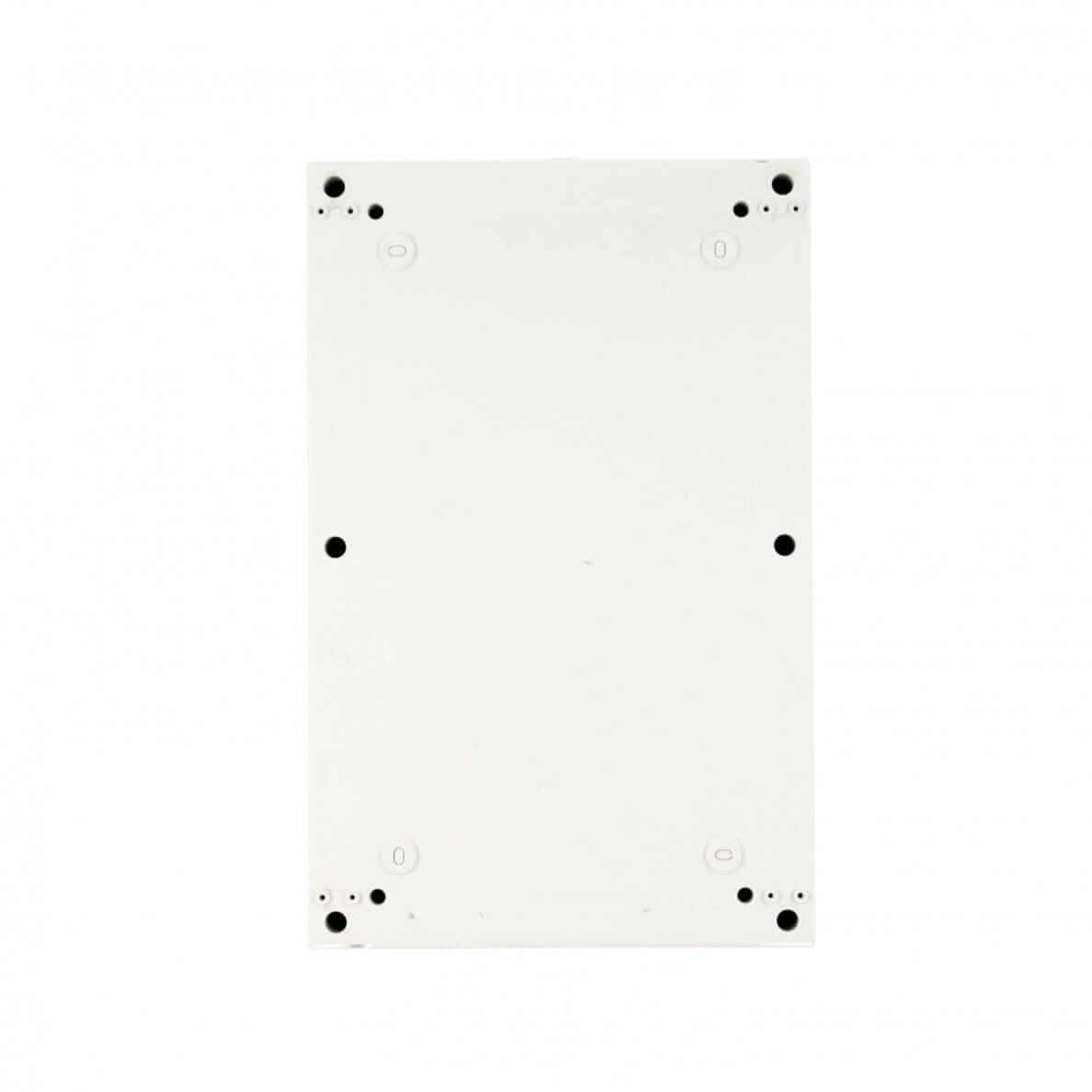

• Compact Dimensions: 400 x 255 x 145 mm, perfect for wall mounting.

Safety Features:

• Comprehensive Monitoring:
  • Output voltage and current monitoring
  • Temperature monitoring
  • Input voltage monitoring
  • Ground fault detection
  • AC leakage relay (40A, 40mA)
• Operating Temperature: -30°C to +50°C
• Storage Temperature: -40°C to +85°C

Optional Features:

• Type 2 Socket Lock: €80
• Electric Consumption Accounting Module: €100
• Wi-Fi Charging Activation: €120
• RFID, PIN, or RFID+PIN Activation (up to 300 users): €120

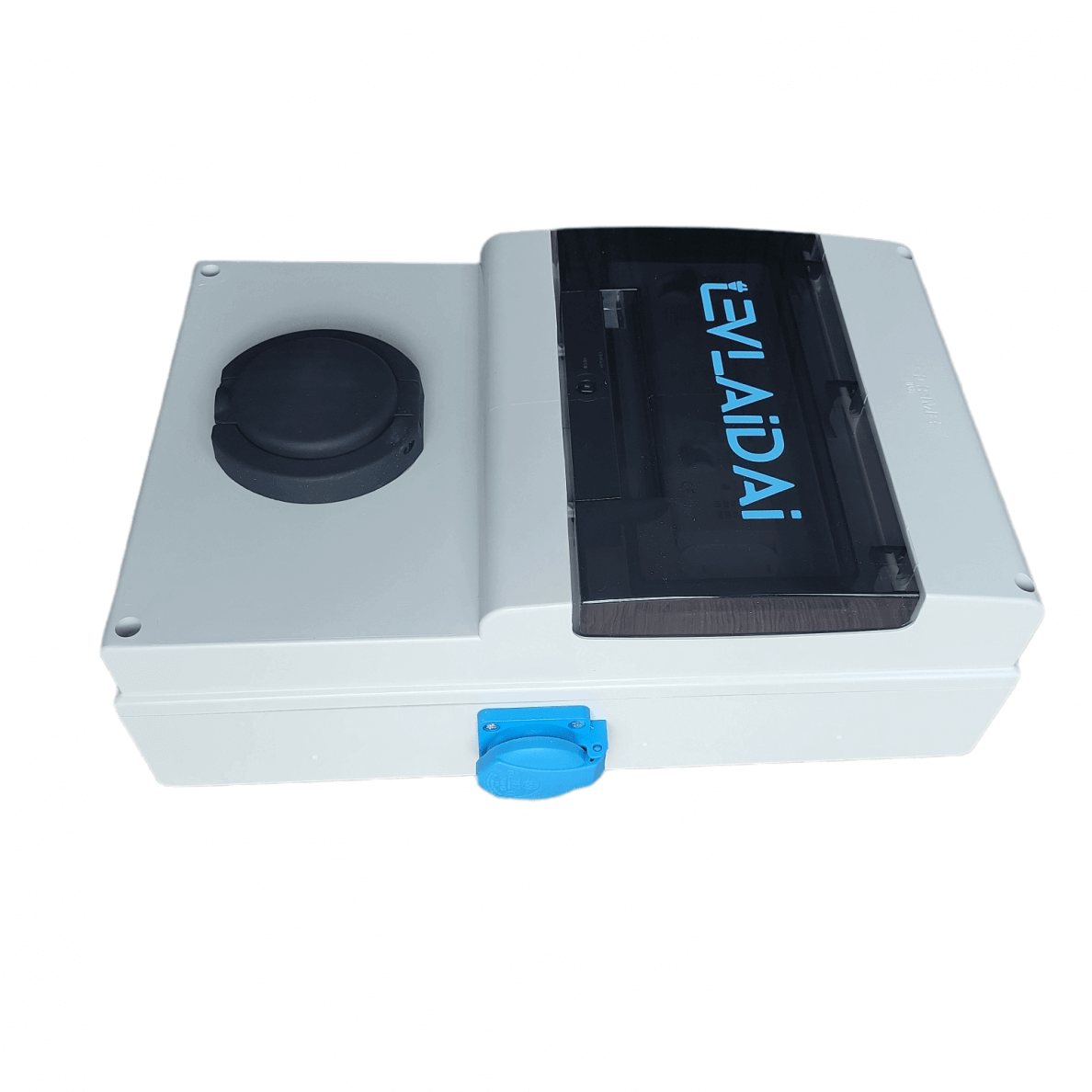

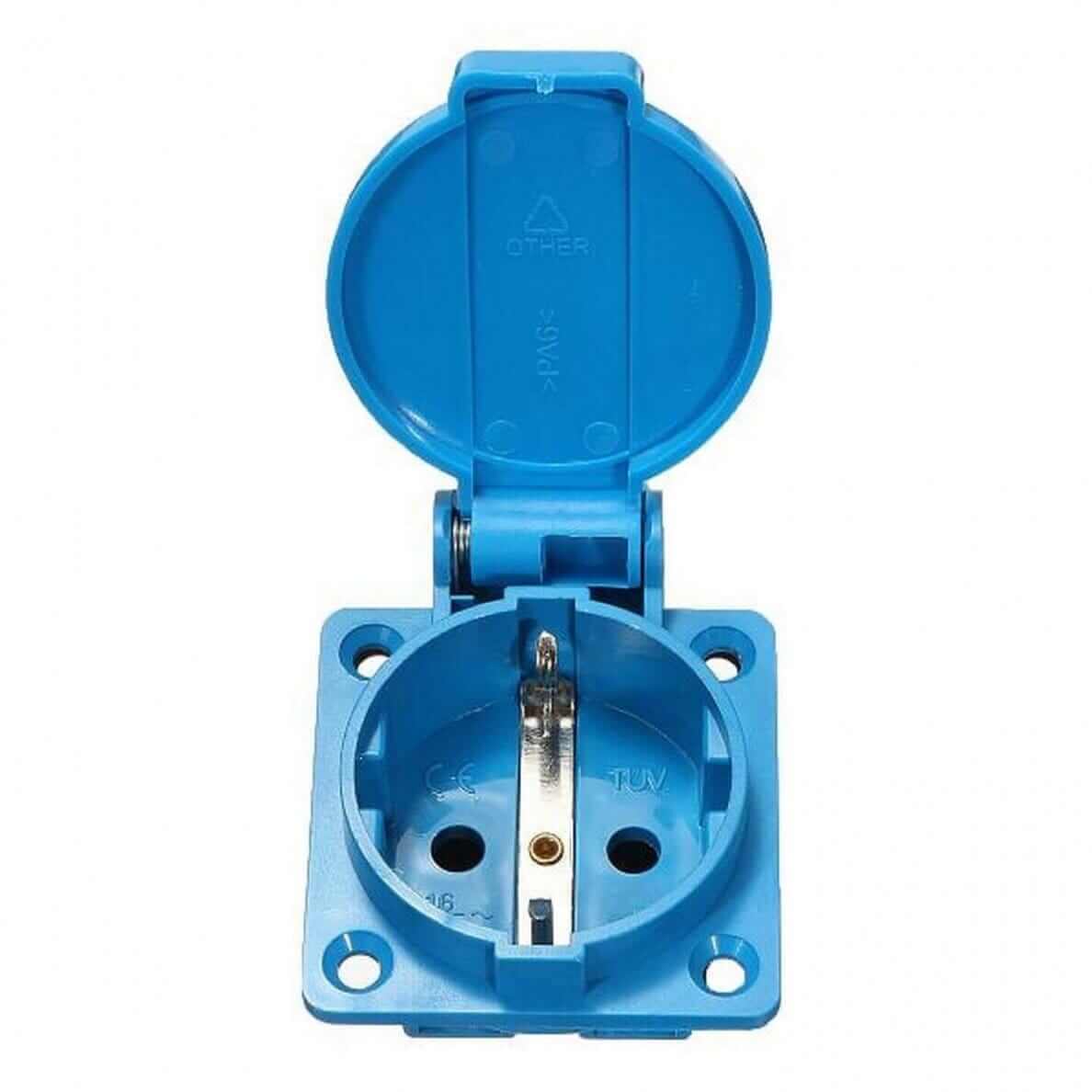

• Additional 16A Schuko Socket: €60

Warranty:

• Standard 2-year warranty, with an option to extend for an additional 3 years for €50.

Smart Management:

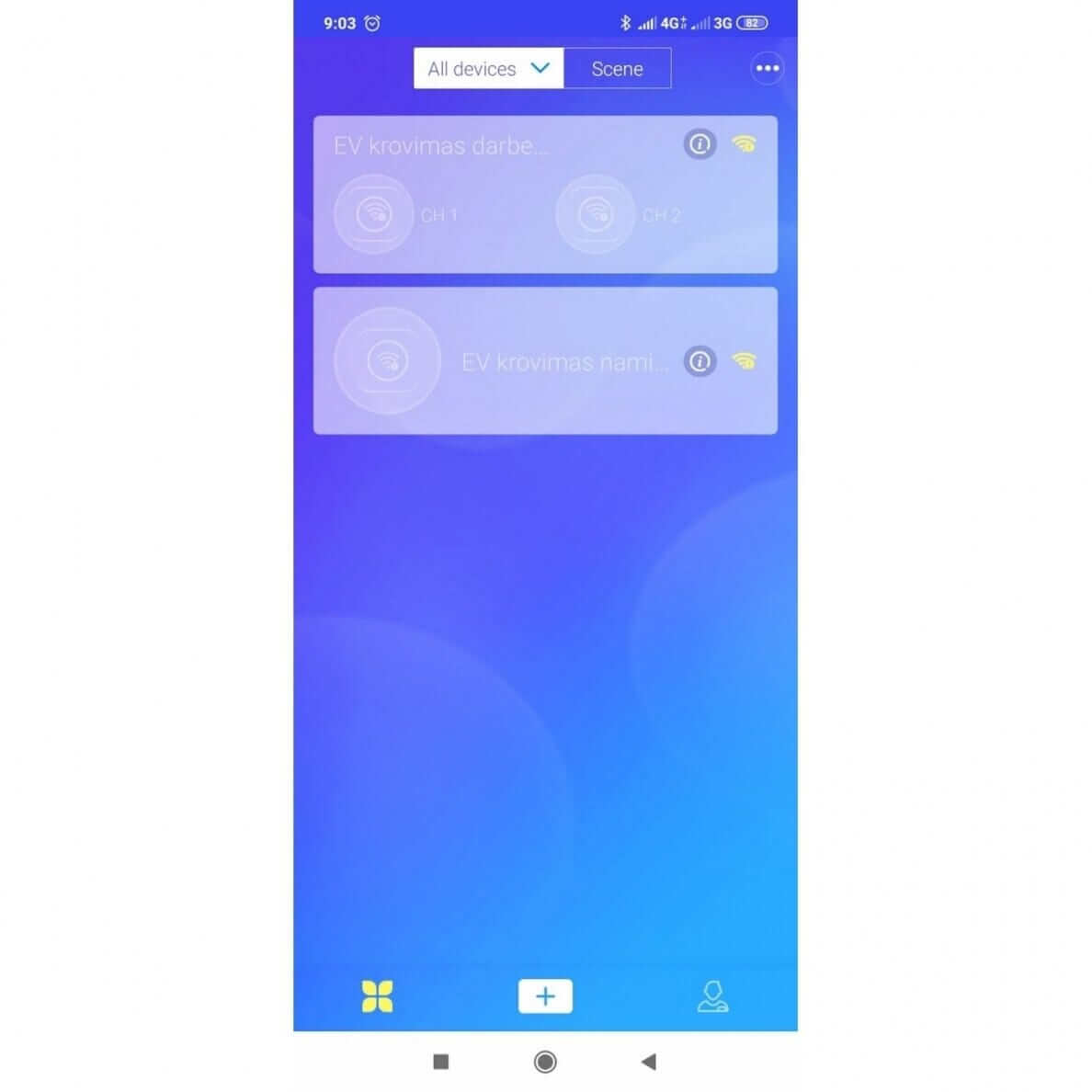

Connect the charging station to our mobile app for an additional €200. This feature allows you to monitor charging statistics, schedule charging times (e.g., overnight), manage user access, and control charging remotely from your smartphone.

Compatibility:

The Type 2 socket adheres to European standards and is compatible with a wide range of electric vehicles, including the Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, Volkswagen e-Golf, BMW i3, and many others.

Upgrade your electric vehicle charging experience with our Wallbox charging station—efficient, safe, and designed for the future of mobility!
