Inbalance Charging Station 2x22 kW
Flexible load balancing, controlled by software, supporting static, dynamic, or BMS level load balancing.
Enhanced safety due to continuous output voltage monitoring (detects partial welding).
Technical Specification
Maximum charging power: 2 x 22kW
Product warranty: 2 years
IP rating: IP54
Connectivity: Ethernet, 4G (LTE)

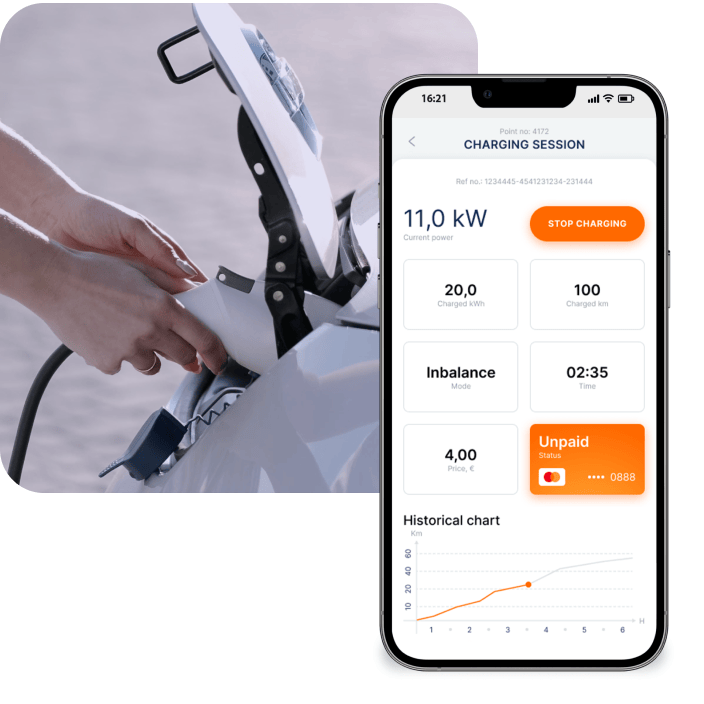

User identification: Via mobile app
Integrated energy metering: Yes, MID
Dynamic power management:
RFID/NFC: Yes (optional)
Device casing: Stainless steel, UV and corrosion-resistant.
Communication: OCPP 1.6/ 2.0
Integrated MID certified energy meters.
Integrated residual current devices meeting the requirements of IEC62955 with 6 mA DC current detection function.
Using smart thermal control system ensures protection against overheating and condensation prevention.
Ethernet and additional 4G internet connection.
Quick installation with multiple earthing options.
Optional NFC and (or) RFID reader available.
CHARGER CLASSIFICATION (IEC 61851)
Nominal voltage: 230–400 V, 50 Hz
Overvoltage category: III category (no more than 4 kV)
MECHANICAL SPECIFICATIONS

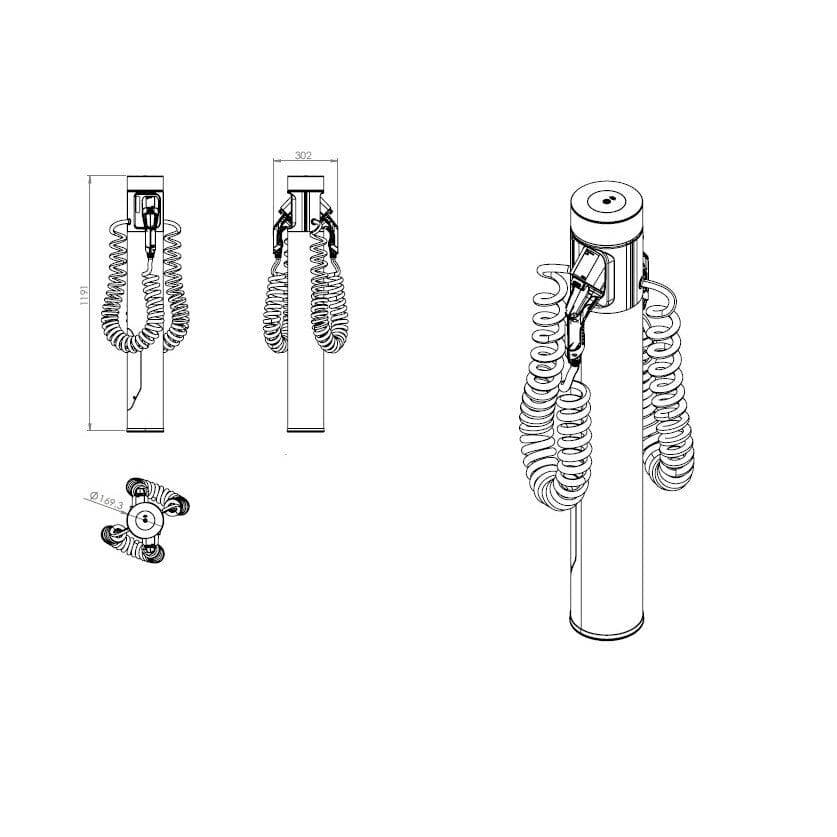

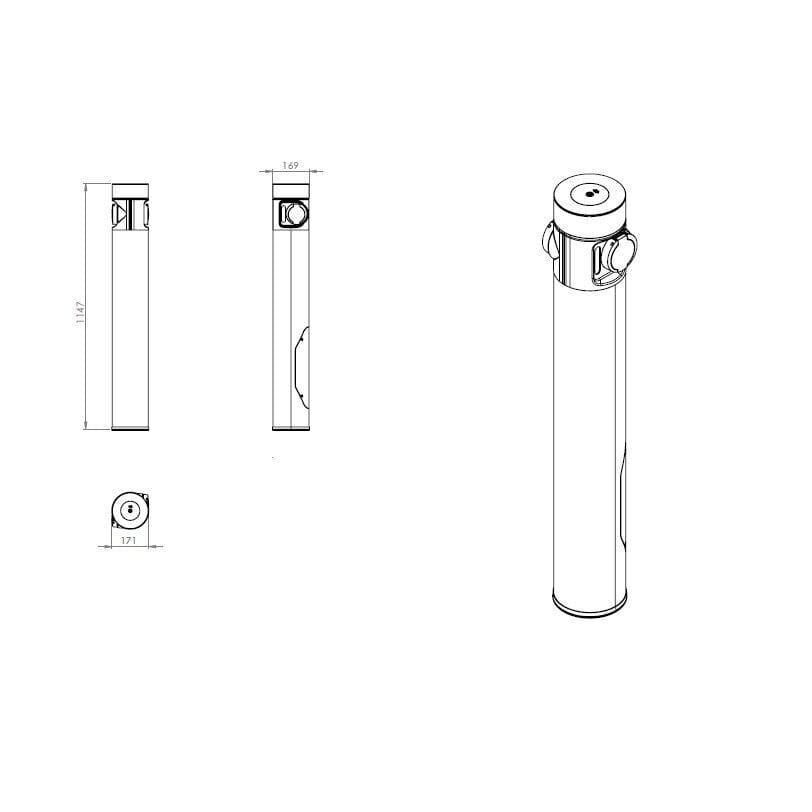

Dimensions: 1137 mm x 170 mm x 170
IK rating: IK10
IP rating: IP54 (outdoor conditions)
Weight: 20 kg
ENVIRONMENTAL SPECIFICATIONS
Operational temperature range From -30 to +50 °C (outdoor conditions)
Storage temperature range From -30 to +60 °C
Overheating protection Linear charging power reduction at the upper range

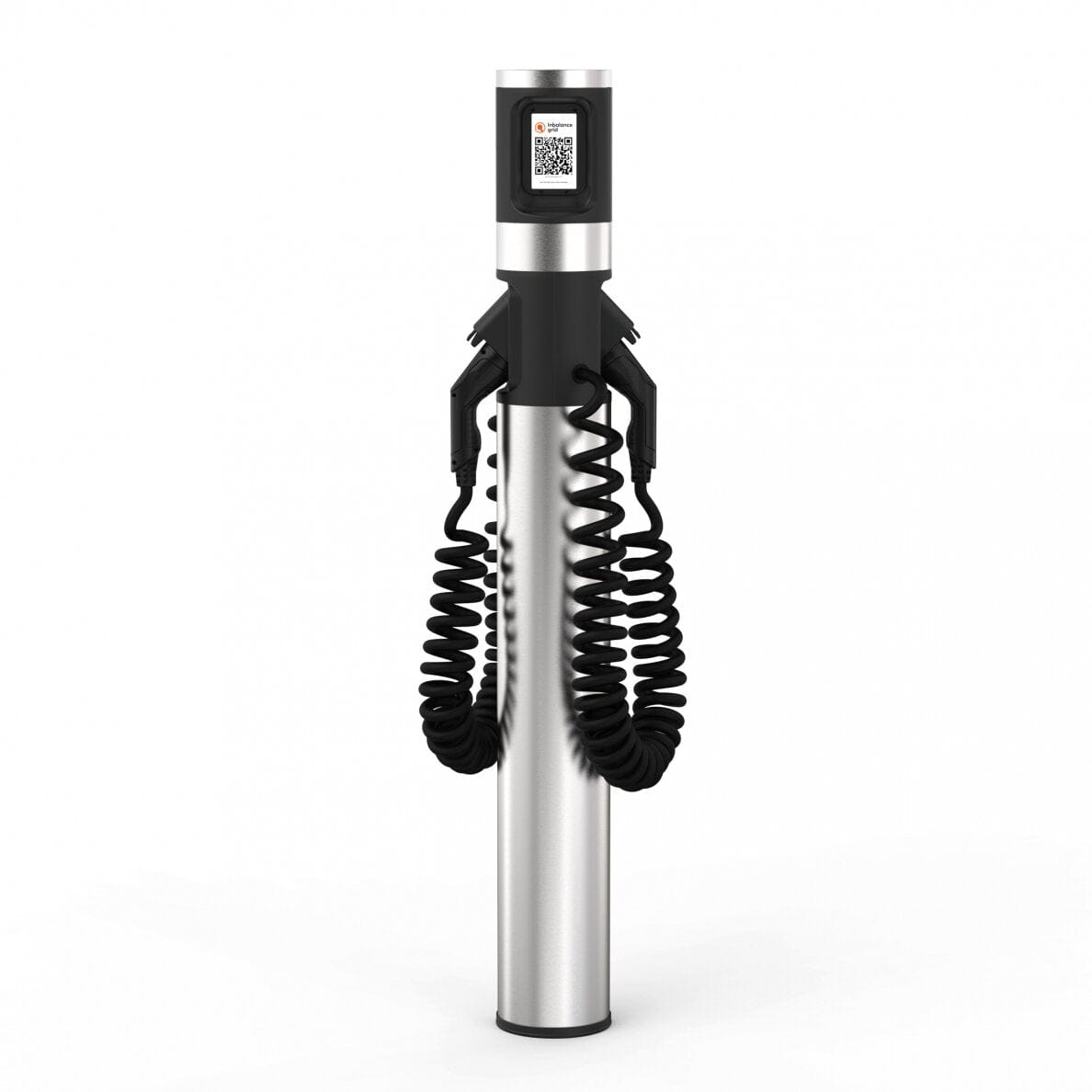

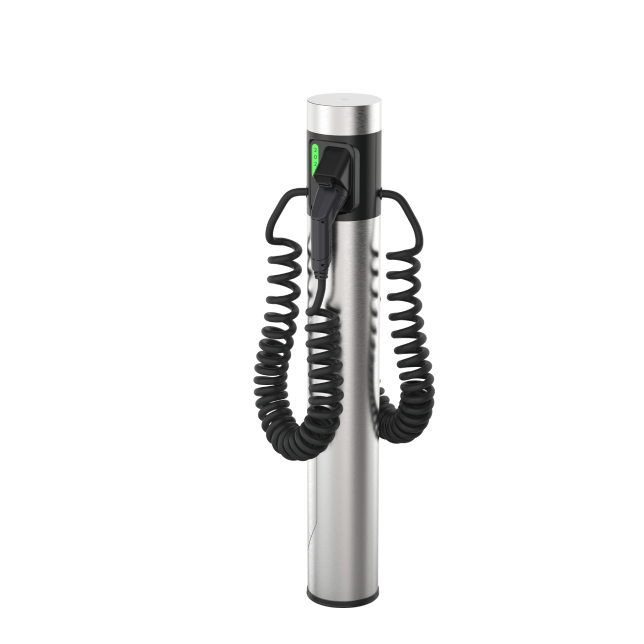

Integrated cables €330
FC/RFID €70
Screen €330
Payment terminals €440
