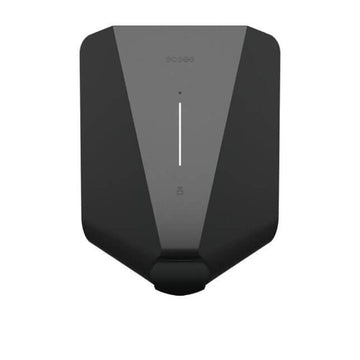

Easee Charge Lite 11kW charging station

Charge Lite

Charge Lite is a reliable charging station designed for all home charging needs.

Key Features:

• Bluetooth Control: Provides a stable connection and ensures safe charging with advanced product protection features.
• Design: Thoughtfully designed with Norwegian quality for an easy charging experience.

Specifications:

• Universal Model: Compatible with both 1-phase and 3-phase systems, offering charging power from 1.4 kW to 11 kW.
• Scandinavian Quality: Manufactured in Norway.
• Dynamic Power Management (DLM): Requires the Easee Equalizer or Equalizer Amp meter kit.
• Autonomous Power Balancing: Ensures even distribution of electricity among stations.
• Solar Integration: Communicates seamlessly with solar installations.
• Free App Control: Manage via a free app (Wi-Fi, Bluetooth) with built-in 4G connectivity.
• Warranty: 5 years or 2000 charging cycles, whichever comes first.

Charging Capabilities:

• Up to 7.4 kW on a single-phase network and up to 11 kW on a three-phase network.
• Install up to three chargers at one site.
• Easee Link™: Local power balancing.
• Automatic updates with the latest features.

Safety Features:

• Complies with various standards, including:
  • 2014/53/EU (RED)
  • 2011/65/EU (RoHS)
  • 2014/30/EU (EMC)
  • 2014/35/EU (LVD)
  • EV regulations (Smart Charging Stations) 2021
• Integrated AC & DC RCD protection.
• Temperature sensors, overload protection, IK10 impact resistance, and theft protection.

Technical Specifications:

• Connectivity:
  • Wi-Fi 2.4 GHz b/g/n
  • Bluetooth 4.3
  • Built-in eSIM (Cellular LTE)
  • OCPP 1.6
  • Easee LinkRF
• Charging:
  • 3-phase IT: 3 x 9 A = 6.4 kW
  • 3-phase TN: 3 x 16 A = 11 kW
  • 1-phase IT/TN: 1 x 32 A = 7.4 kW
• Voltage: 3x 230 V / 400 V AC (±10%)
• Frequency: 50 Hz
• Connection Type: Type 2 socket
• Dimensions:
  • H: 256 mm x W: 193 mm x D: 106 mm
  • Wall mount dimensions: H: 160 mm x W: 125 mm
• Weight: 1.5 kg
• Operating Temperature: -30 °C to +40 °C

Easee App:

• Local Control: Powerful local management of the charger via the app.
• Status Check: Monitor charger status via Bluetooth.
• Cable Management: Lock/unlock charging cable remotely.
• Session Summary: Access charging session summaries and consumption tracking.
• Power Overview: Review available power and configuration options.

If you need more information or have specific questions, feel free to ask!
