Charging cable 480 V - Type 2 ( 32A, 3 phases 22 kW)

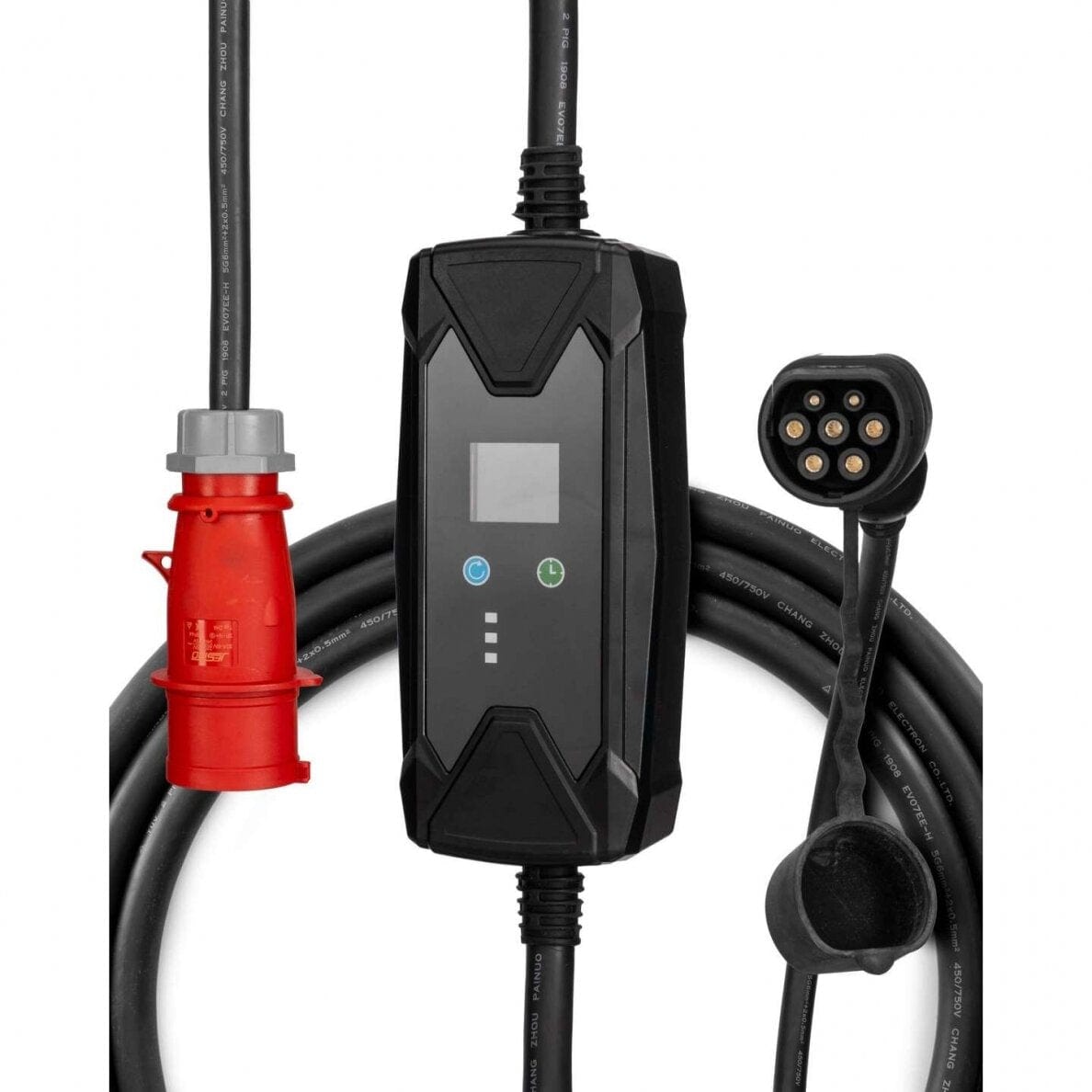

Electric Vehicle Charging Cable 32A, 3 Phases, from Three-Phase Socket to Type 2 Connector

Specifications:

• Protection Degree: IP54 (operational condition)
• Contact Material: Copper alloy, silver + thermoplastic upper
• Input Power: 480V AC
• Output Power: 22 kW
• Cable Length: 5 meters
• Mechanical Lifespan: Over 10,000 plug/unplug cycles
• Impact Resistance: Capable of withstanding a 1-meter drop and 2-ton vehicle pressure
• Insulation Resistance: > 1000MΩ (DC500V)
• Temperature Rise at Terminal: < 50K
• Flame Resistance Rating: UL94V-0 (enhanced fire safety)

Features:

• Real-time display of charging status data (charging duration, power in kW, temperature, energy consumed in kWh)
• Compact and portable design, ideal for cost-effective charging at work, during travel, or in locations with three-phase sockets.

Safety Features:

1. Leakage protection
2. Overvoltage and undervoltage protection
3. Overload protection
4. Lightning protection
5. Overheating protection

Temperature Protection:

• When the control box temperature exceeds 85°C, charging will stop and resume when the temperature drops to 65°C.

LED Display Shows:

1. Charging temperature
2. Charging current
3. Charging voltage
4. Energy charged in kWh
5. Charging time
6. Set current (adjustable 6A, 10A, 16A, 20A, 24A, 32A)
7. Charging speed in kW

Usage Instructions:

• The blue button is used to adjust the current. To change the current, press the blue button. While adjusting, the power plug remains connected, and the Type 1 SAE J1772 (or Type 2) connector is disconnected. Once the desired current is set, connect it and start charging.

Type 2 Connector:

• This European standard is used by electric vehicles manufactured in Europe, such as the Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and others intended for the European market like the Volkswagen e-Golf or BMW i3.
