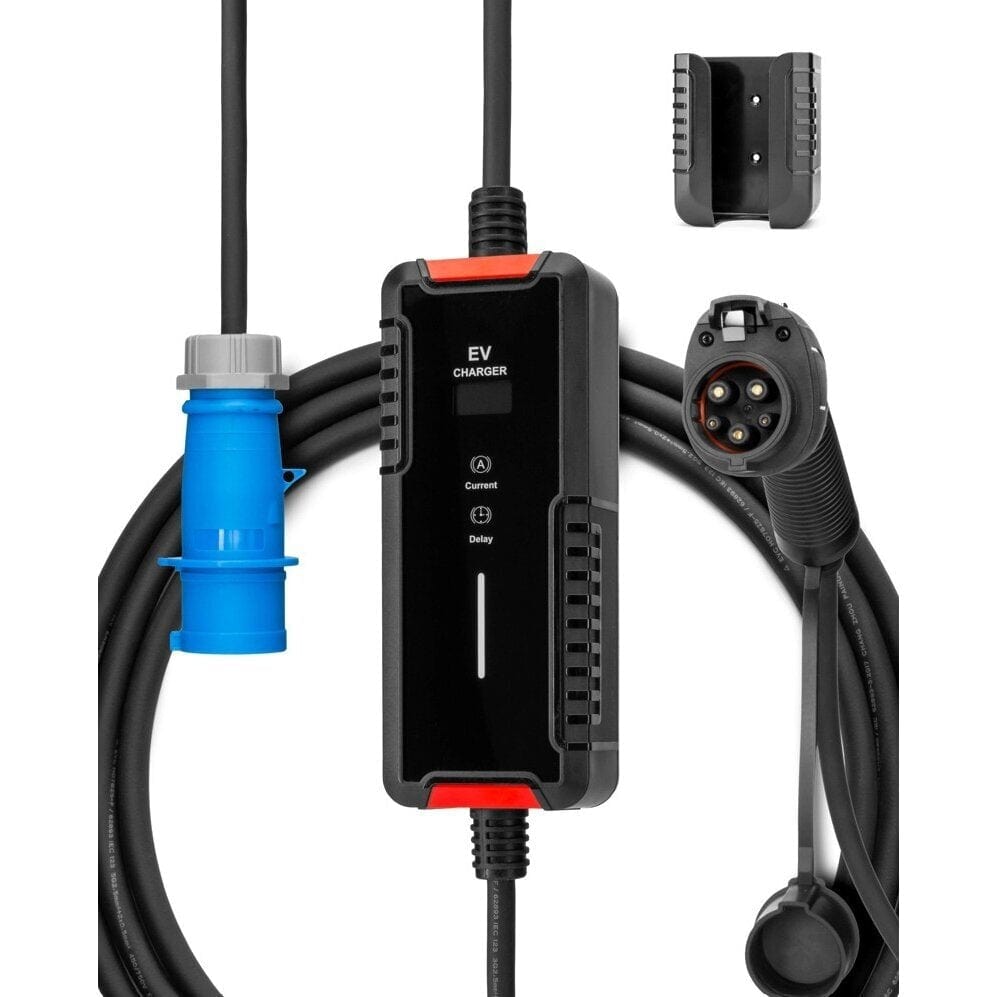

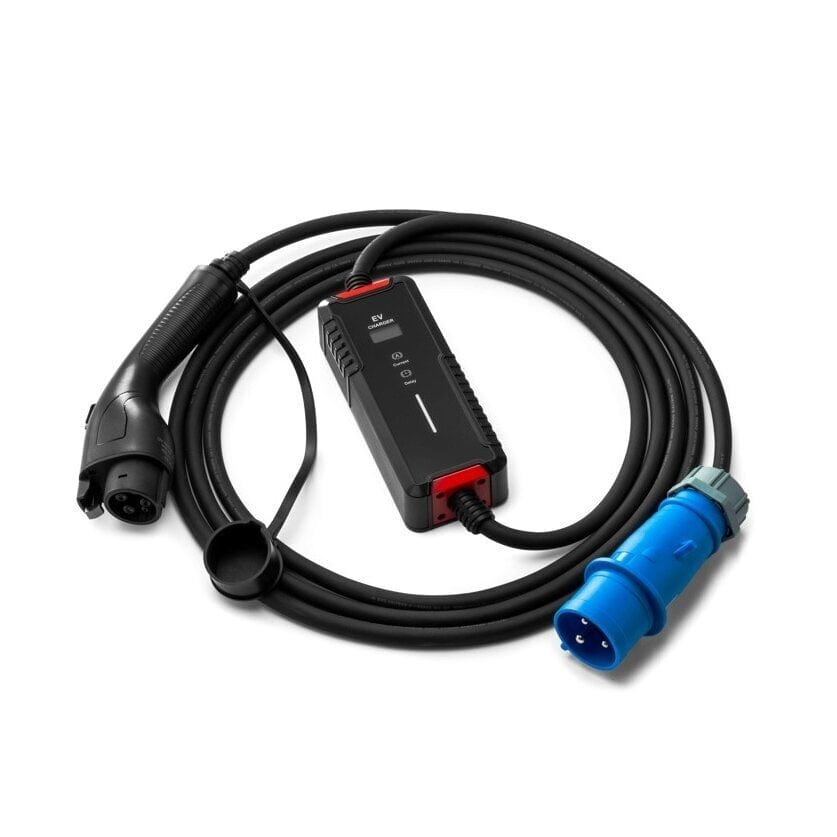

Charging cable 220V - Type 1 ( 32A, 1 phase 7,2 kW)

Electric Vehicle Charging Cable 32A, Type 1 with Timer Function

A Type 1 charging cable for 220V is a portable EV charging connector featuring an IEC62196 Type 1 plug delivering up to 7.2kW at 32A single-phase power. It includes comprehensive safety features like leakage protection and temperature monitoring, with an IP54 rating and digital display showing charging parameters, commonly used for American and Japanese vehicle models.

Specifications:

• Plug Type: IEC62196 Type 1
• Power Plug: CEE 3-pin
• Protection Rating: IP54 (operational condition)
• Contact Material: Copper alloy, silver + thermoplastic top
• Input Power: 110V-250V AC
• Output Power: 7.2 kW
• Total Length: 5 meters
• Mechanical Lifespan: Over 10,000 plug/unplug cycles
• External Force Resistance: Can withstand a drop from 1 meter and pressure from 2 tons
• Insulation Resistance: > 1000 MΩ (DC 500V)
• Terminal Temperature Rise: < 50K

Features:

• Display: Shows real-time charging status data including charging duration, power (kW), temperature, and energy consumed (kWh).

This compact, portable electric vehicle charging cable is an ideal solution for affordable charging at work, during travels, or at locations with a standard outlet.

Safety Features:

1. Leakage Protection
2. Over-voltage and Under-voltage Protection
3. Overload Protection
4. Surge Protection
5. Overheat Protection

Temperature Protection:
Charging is safe, as the system will stop charging if the control box temperature exceeds 85°C and will resume when it drops to 65°C.

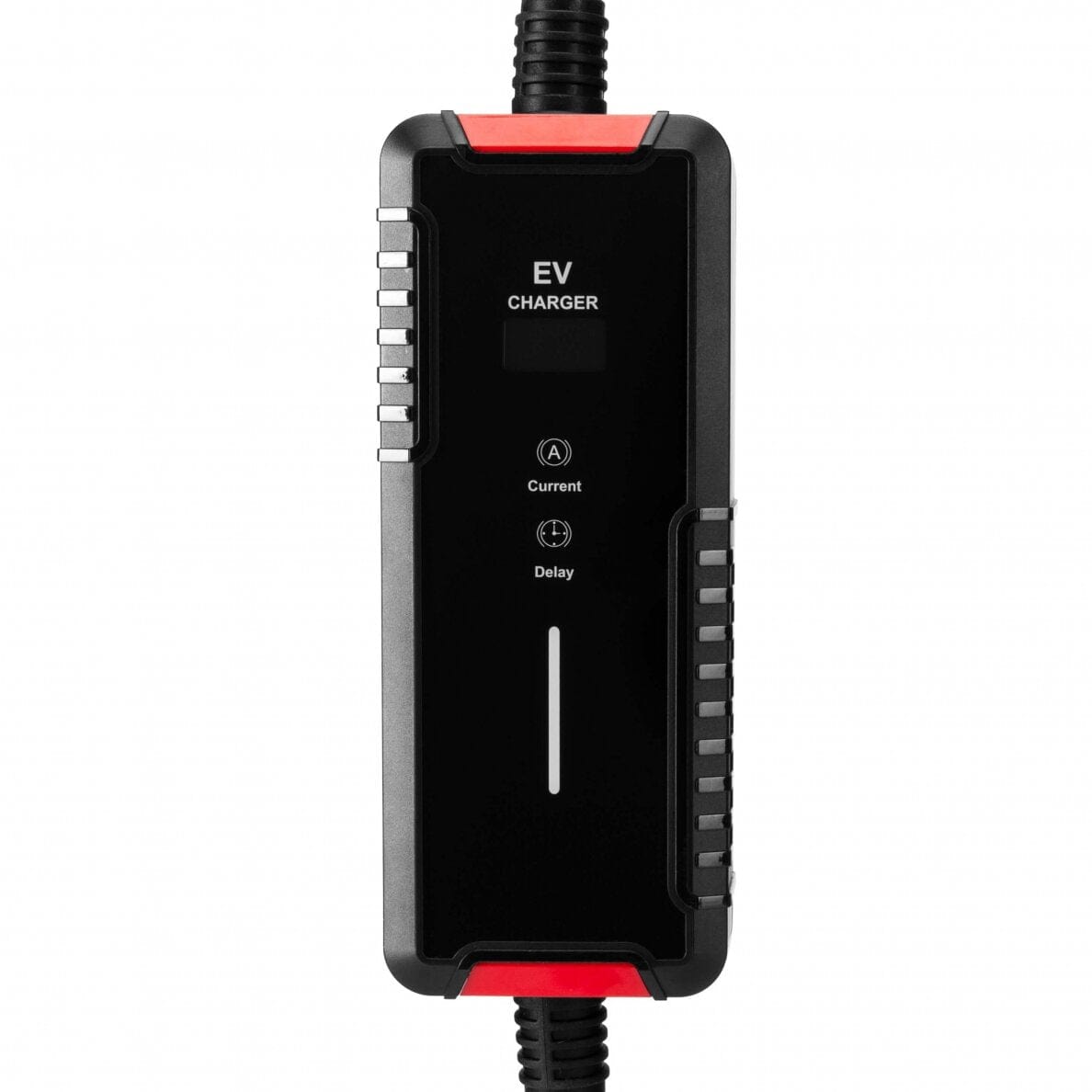

LED Display Shows:

1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged (kW/h)
5. Time Charged
6. Set Current (adjustable: 10, 13, 16, 20, 24, 32A)
7. Charging Speed (kW)

Usage Instructions:

The blue button is used to adjust the current. To change the current, press the blue button. When adjusting the current, the power plug should always be connected, and the Type 1 SAE J1772 (or Type 2) plug should be disconnected. Once the desired current is set, connect it and start charging.

Type 1 Standard:
This type is popular in the USA and Japan, used by electric vehicles such as the Nissan Leaf, KIA Soul EV, Chevrolet Volt, and models intended for the American market like the BMW i3 and Volkswagen e-Golf.
