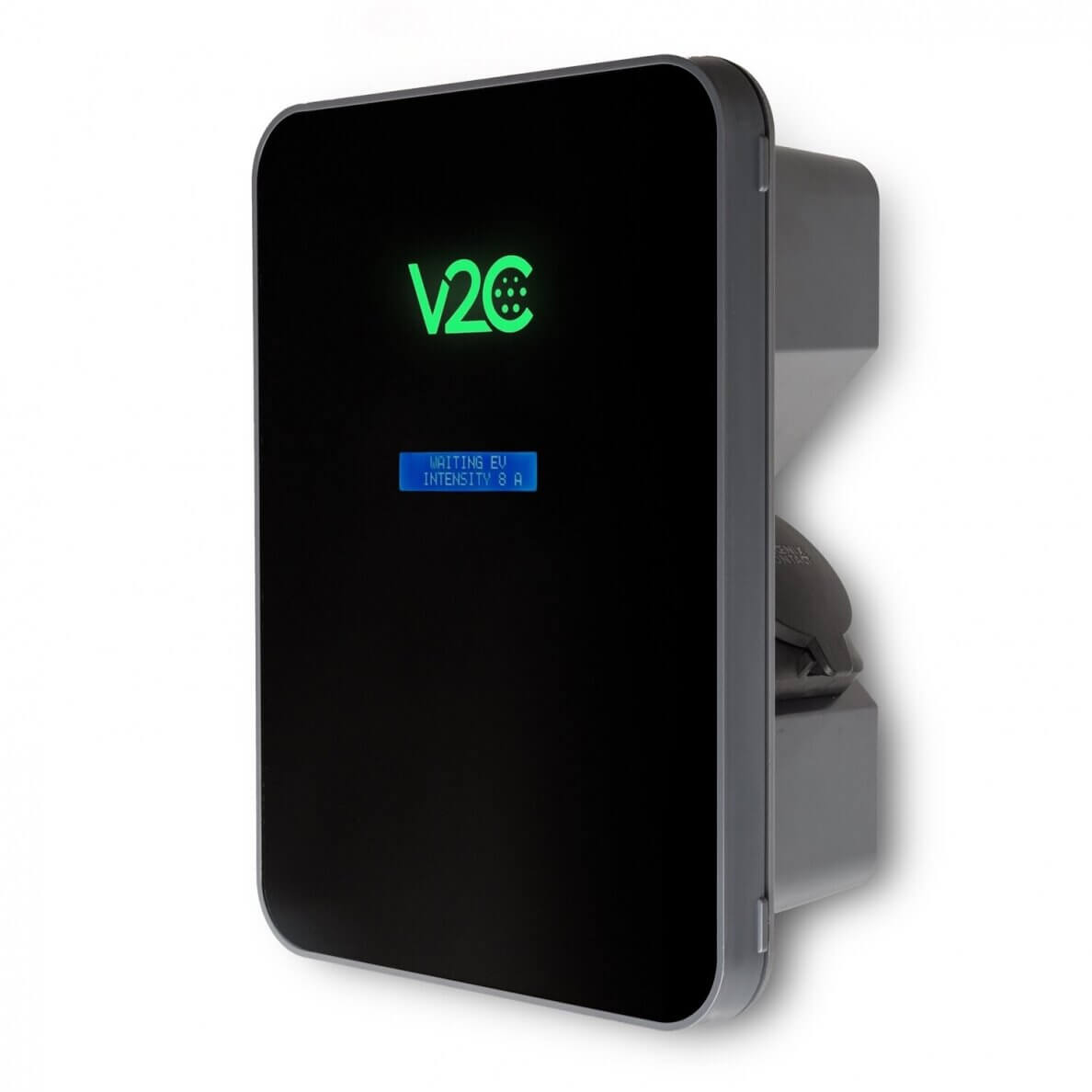

V2C Trydan charging station 22kW with display, 3 phase, Type 2 plug, dynamic balancing
V2C Trydan Electric Vehicle Charger
Innovative Features
- Dynamic Balancing & Solar Overload Charging: Integrated features at no extra cost, simplifying installation and reducing budget by approximately €200.
- SmartMeter Integration: No need for additional expensive SmartMeters or expansion boxes; uses CT clamps for current measurement directly from the input or inverter.
Design & Specifications
- Color: Black
- Material: Polycarbonate MVR
- Weight: 7 kg
- Charging Cable Type: Flat / Spring
- Operating Temperature: -25ºC to +50ºC
- Storage Temperature: -40ºC to +70ºC
- Display: 2.6 inches, RGB lighting indicating charging status
- Connection Type: Type 2 plug
- Voltage: 230V / 400V
- Max Output Power: 7.4 - 22 kW
- Adjustable Current: 6-32A (per phase)
- Nominal Frequency: 50Hz / 60Hz
- Protection Class: IP54 / IK10
- Residual Current Detection: AC 30mA / DC 6mA
Smart Functionality
- Mobile App Control: Full management via the V2C Cloud app using Wi-Fi or Bluetooth.
- Voice Control: Compatible with Alexa for hands-free operation. Command examples: “Alexa, start charging my electric car.”
- Open API Access: For developers to integrate and customize functionalities.
Solar Integration
- Direct Charging from Solar Generation: Connects easily to any solar inverter, enabling almost free kilometers.
- Compatibility with Inverters: Works with leading inverter brands such as GoodWe, Fronius, Huawei, Ingeteam, Kostal, SolarEdge, SolaX, Victron, and supports Shelly and Wibeee current meters.
User-Friendly Installation
- Easy Setup: Designed for straightforward installation and operation. Can function as a standard charger using grid electricity if solar is unavailable.
- Remote Management: Control charging sessions, monitor statistics, and set schedules based on electricity pricing.
Summary
The V2C Trydan is one of the most advanced EV chargers on the market, combining elegant design with extensive functionalities. Its dynamic balancing and solar charging capabilities, along with easy app control and voice activation, make it a smart choice for both eco-conscious users and those looking to simplify their home charging setup.
