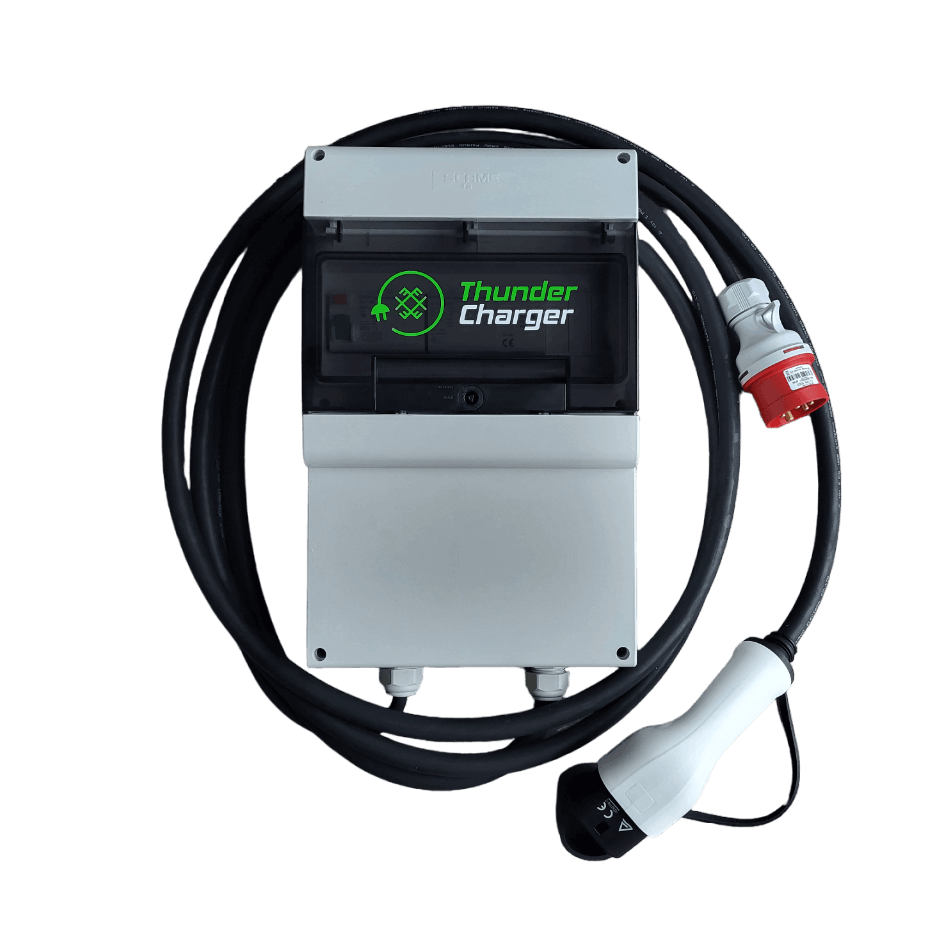

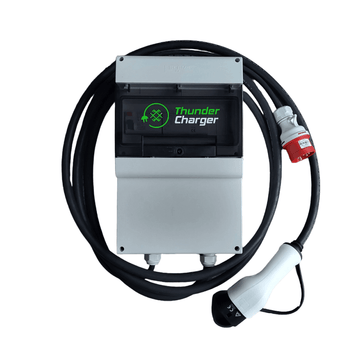

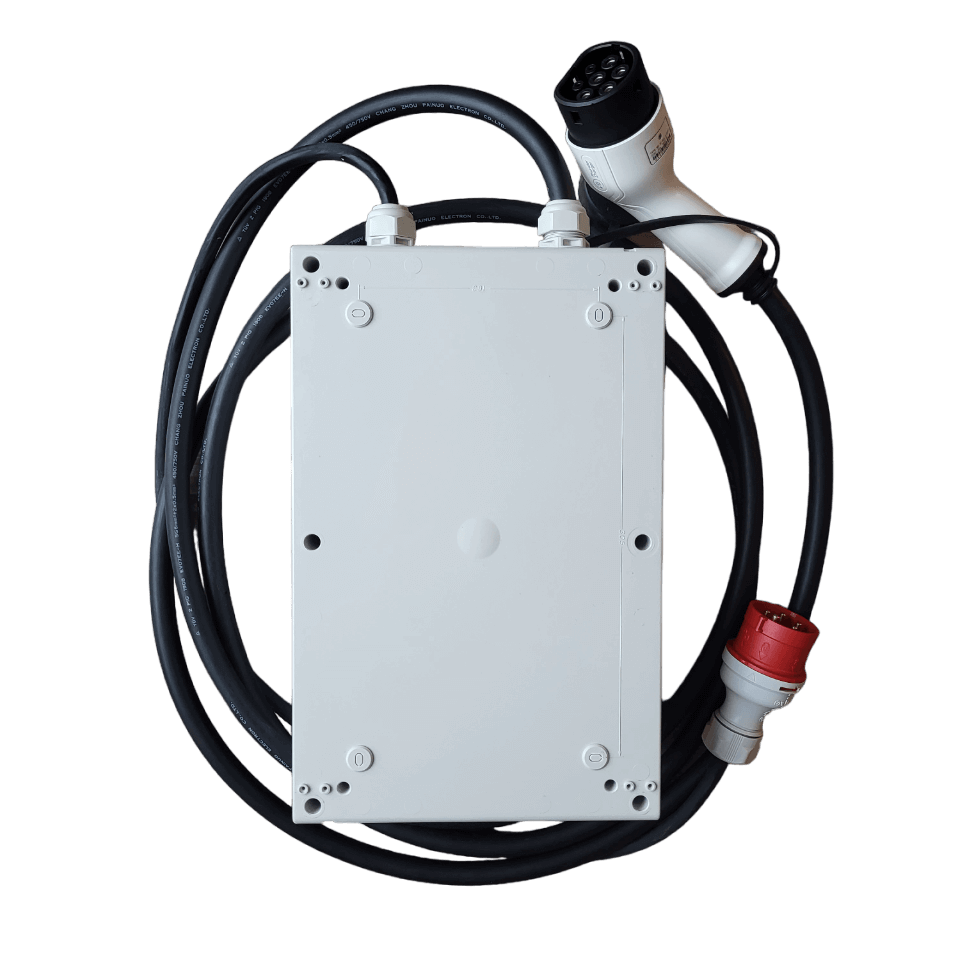

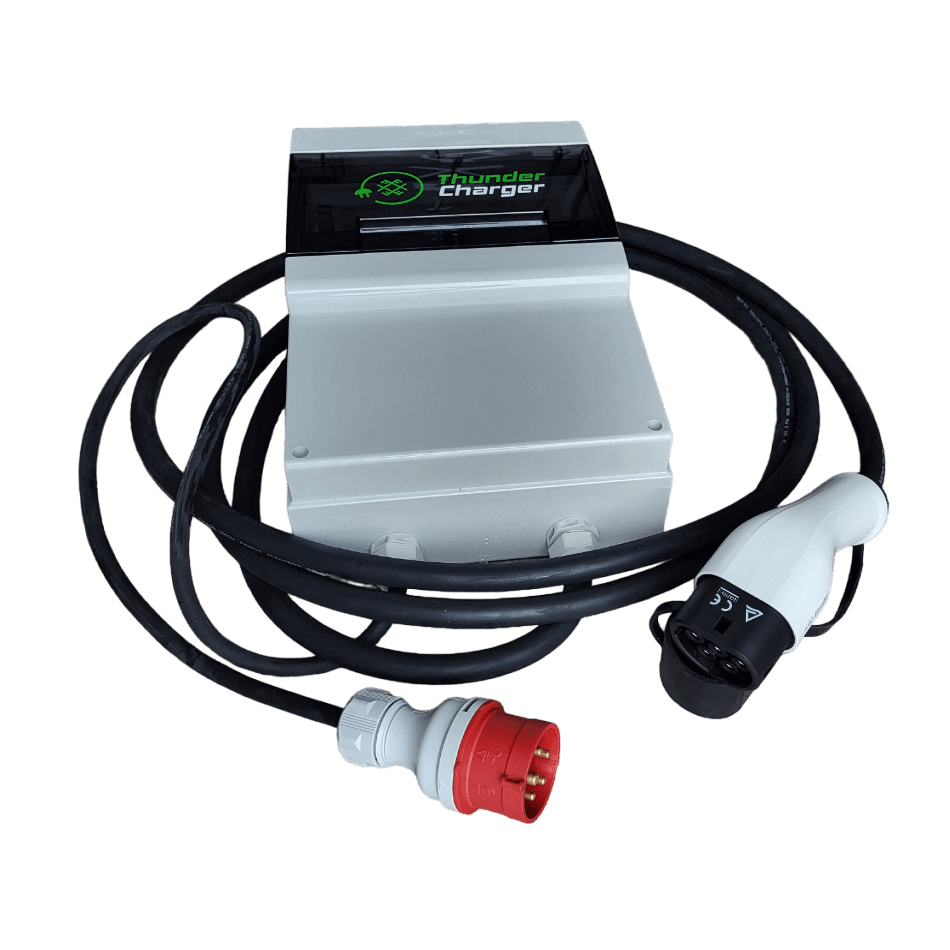

Charging station with Type 2 cable 5m long, 11kW and three-phase plug

Charging Station Overview

Compatibility

This charging station is designed for all electric vehicles (EVs) and plug-in hybrid vehicles (PHEVs).

Components

• Built with high-quality components from ABB, Schneider, and Hager, alongside a locally manufactured controller based on OpenEVSE technology.
• Incorporates essential safety features for secure EV charging, including grounding checks, diode verification, and protection against stuck contacts.

Standard Equipment

• Adjustable Charging Current: Ranges from 6A to 11A in 2A increments (3kW - 11kW).
• Charging Socket: Type 2
• Resistance Standards: IP66 and IK07
• Dimensions: 400 x 255 x 145 mm

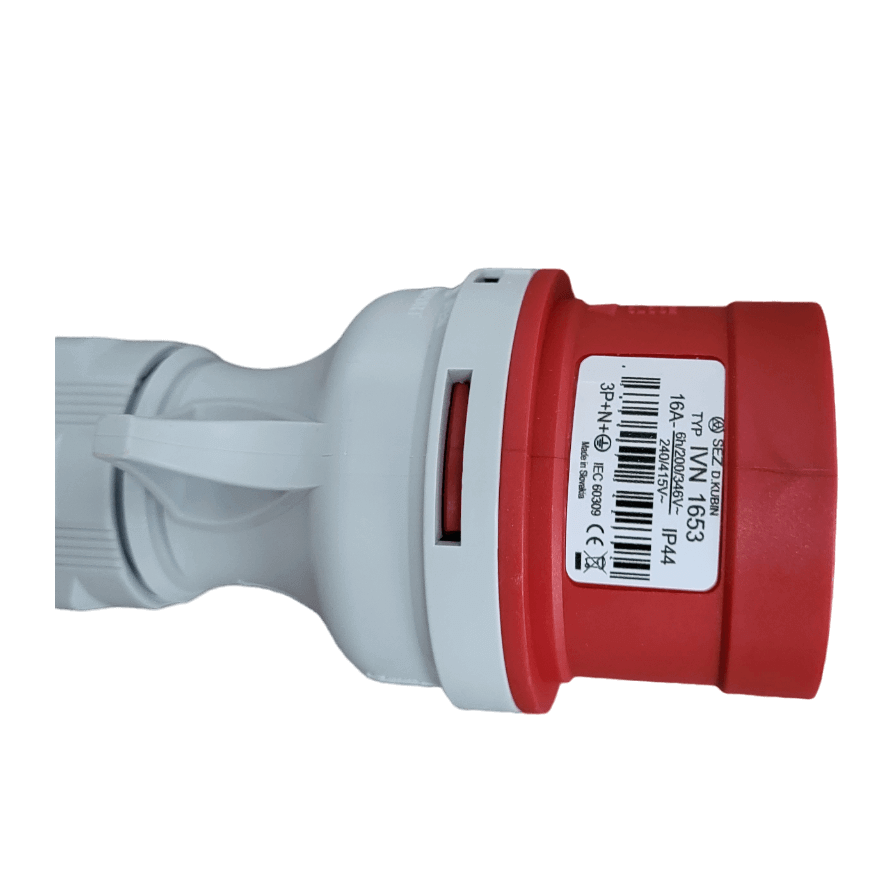

• Included: 0.5m long three-phase 16A (11kW) red plug for easy and quick connection.

Safety Features

• Monitoring of output voltage and current
• Temperature monitoring
• Input voltage monitoring
• Ground fault detection
• AC leakage relay (40A, 40mA)
• Operating temperature: -30°C to +50°C
• Storage temperature: -40°C to +85°C

Optional Features

• Type 2 socket locking: +€80
• Energy consumption monitoring module: +€100
• Wi-Fi activation for charging: +€120
• RFID/PIN activation (up to 300 users): +€120
• Additional 16A Schuko socket: +€60

Warranty

• Standard warranty: 2 years
• Extended warranty for an additional 3 years: +€50

Smart Features

• The station can be controlled via an app (Wi-Fi-enabled). Users can view charging history, set charging schedules (e.g., during night hours), allow other users to connect, or block charging access. The app is available for an additional cost of +€200.

Type 2 Standard

• The Type 2 connector is a European standard used by various EVs such as:
  • Volkswagen e-Up!
  • Hyundai Ioniq
  • Renault ZOE
  • Nissan Leaf
  • Volkswagen e-Golf
  • BMW i3

This charging station offers robust performance and safety features, making it an excellent choice for both home and commercial use. If you need further details or have any questions, feel free to ask!
