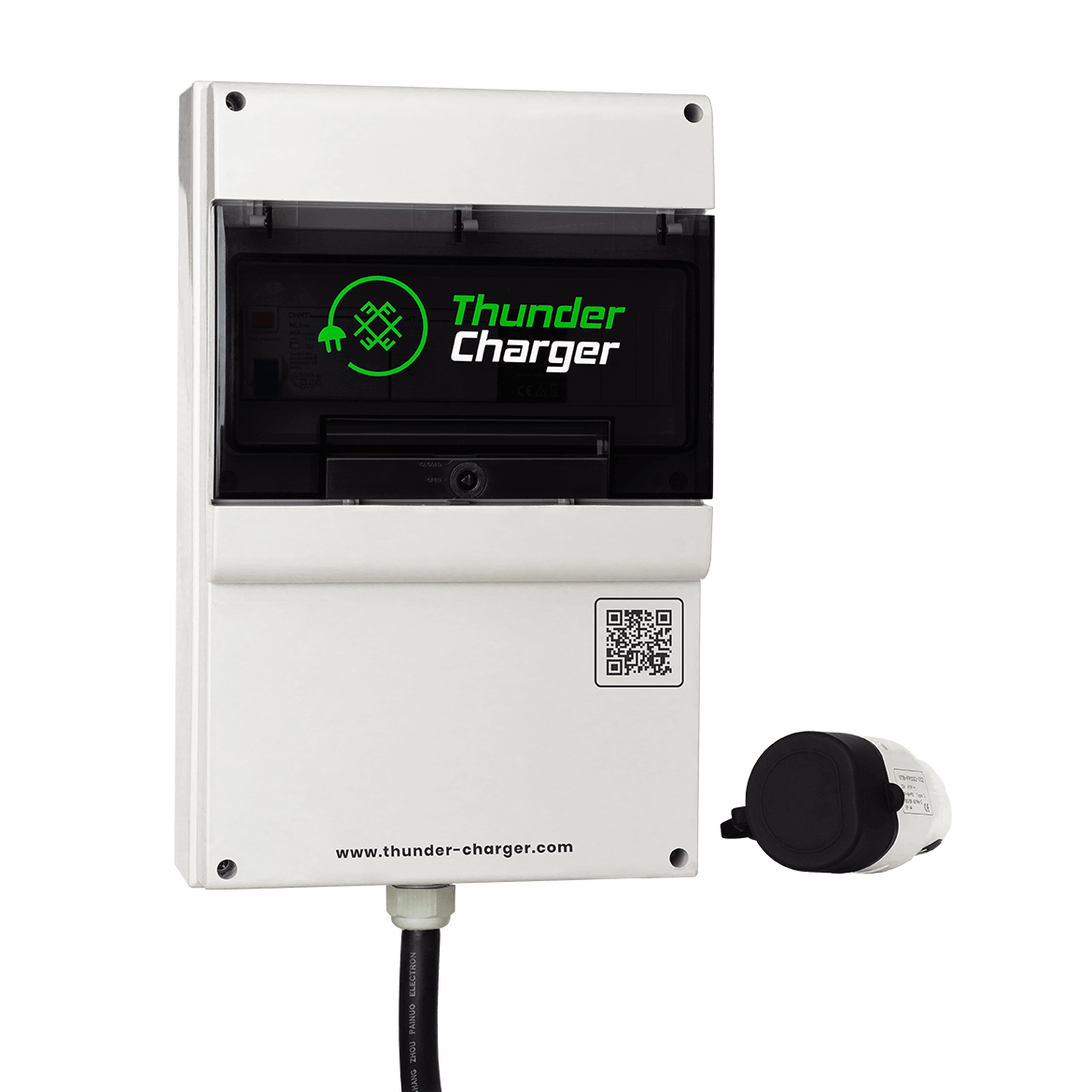

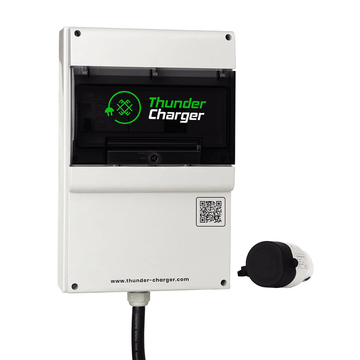

Charging station with Type 2 cable 4.8m long, 3 phase, 22 kW

Main Features of Our Wallbox Charging Stations

• Type: Wall-mounted with Type 2 cable (4.8m)
• Power: 3-phase, 22kW
• Compatibility: Suitable for all electric vehicles and plug-in hybrid vehicles.

Key Components:

• Equipped with components from ABB, Schneider, and Hager, along with a controller based on OpenEVSE, designed and manufactured in Lithuania.
• Safety features include grounding checks, diode checks for vehicle connection, and protection against stuck contacts.

Standard Equipment:

• Adjustable Charging Current: 10A to 32A (4kW to 22kW)
• Charging Connector: Type 2
• Protection Standards: IP66 and IK07
• Dimensions: 400 x 255 x 145 mm

Safety Features:

• Monitoring of output voltage and current
• Temperature monitoring
• Input voltage monitoring
• Ground fault detection
• AC leakage relay (40A, 40mA)
• Operating Temperature: -30°C to +50°C
• Storage Temperature: -40°C to +85°C

Additional Options:

• Type 2 Socket Lock: +60 EUR
• Electric Consumption Meter Module: +80 EUR
• Wi-Fi Activation: +80 EUR
• Charging Activation (RFID, PIN, RFID+PIN): +100 EUR (up to 300 users)
• Additional 16A Schuko Socket: +40 EUR
• Color Customization (Green or Dark Grey): +40 EUR

Warranty:

• Standard warranty: 2 years
• Extended warranty: +3 years (additional 50 EUR)

Smart Control:

• Option to manage the charging station via an app (Wi-Fi enabled). You can monitor usage, set charging times (e.g., during the night), and manage access for other users. This app is available for an additional cost of +200 EUR.

Type 2 Standard

This is the European standard used by electric vehicles manufactured in Europe, including models such as Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, Volkswagen e-Golf, and BMW i3.
