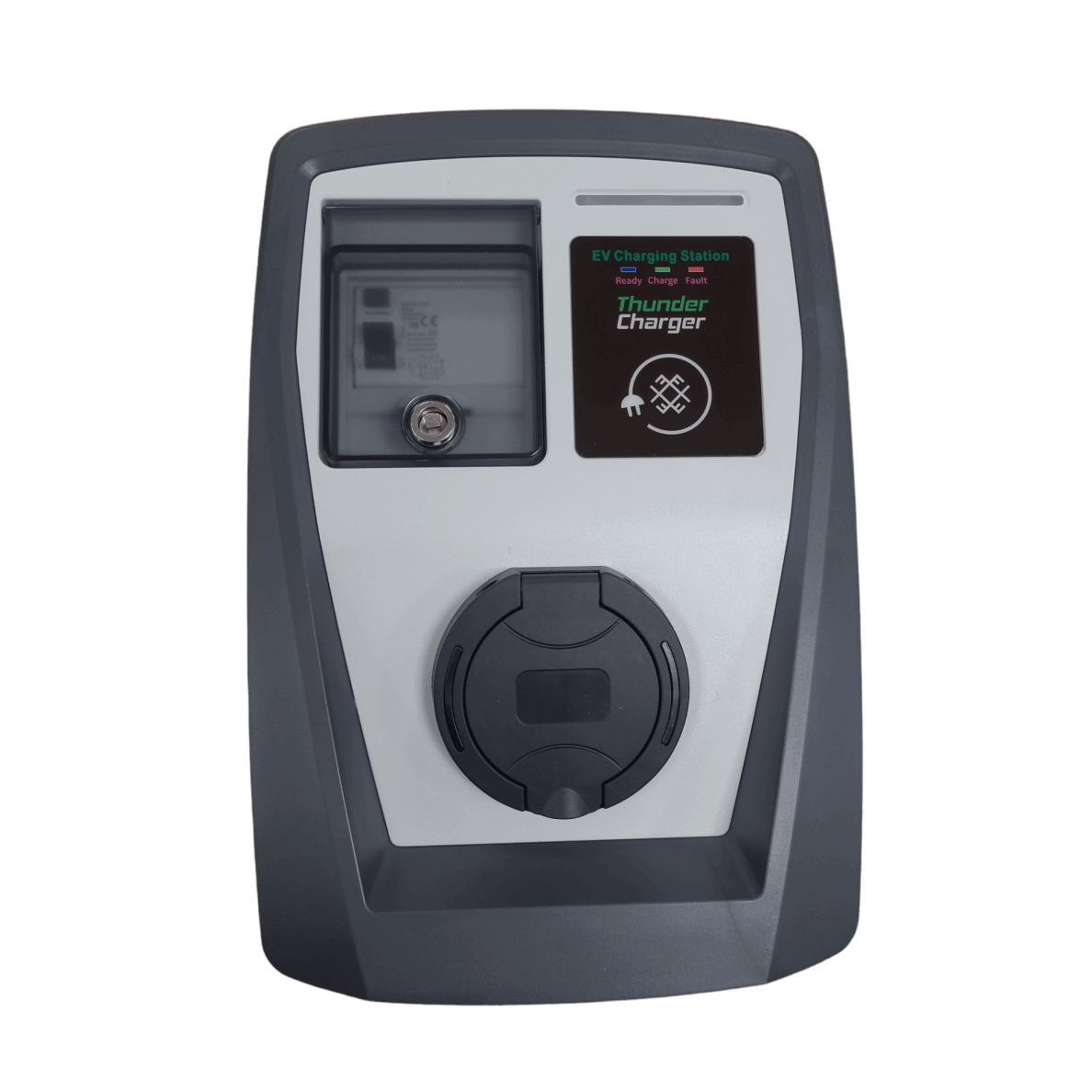

Charging station 3 phase , 22Kw with type 2 socket + balancing power regulation + OCPP protocol

Technical Specifications of the Charging Station

Connection Type: Mode 3 Type 2, supporting up to 22 kW.

Input Power:

• Capable of single or three-phase input at 400 V AC, 50 Hz, with a maximum of 32 A.

Output Power Options:

• Three-phase output at 400 V AC, up to 22 kW (32 A).
• Single-phase output at 230 V AC, up to 7.4 kW (32 A).

Connectivity Options:

• Selectable between 4G, WiFi, and LAN.
• Supports OCPP 1.6 protocol for network integration.

Dynamic Power Management: Enabled for optimal load distribution.

User Interface:

• Equipped with a three-color LED indicator (green, blue, red) for operational status.

Charging Control:

• RFID activation for user authentication.
• Option to utilize a mobile application for management and monitoring.

Safety Features:

• Short-circuit protection.
• Leakage current detection.
• DC fault detection.
• Emergency stop button.

Physical Specifications:

• Protection Class: IP54 (dust and water resistant).
• Impact Resistance: IK08.

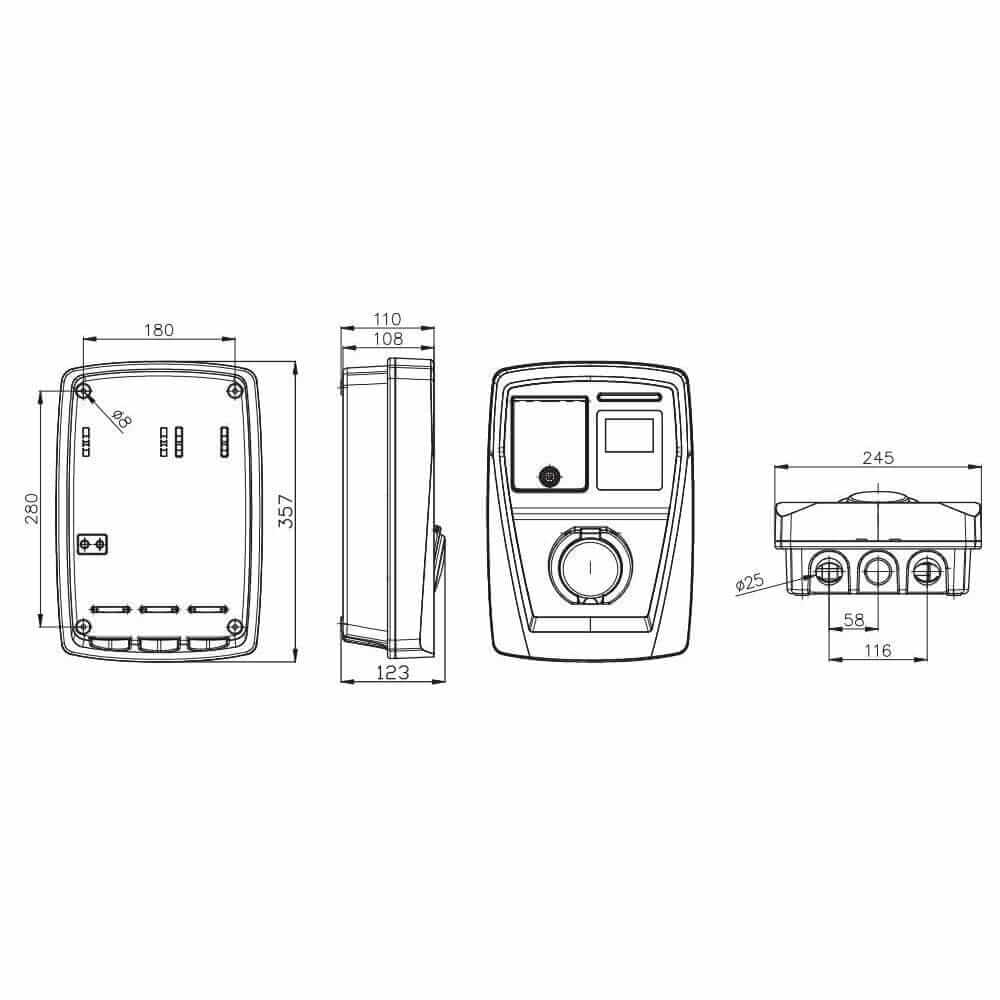

• Dimensions: 357 mm x 245 mm x 123 mm.

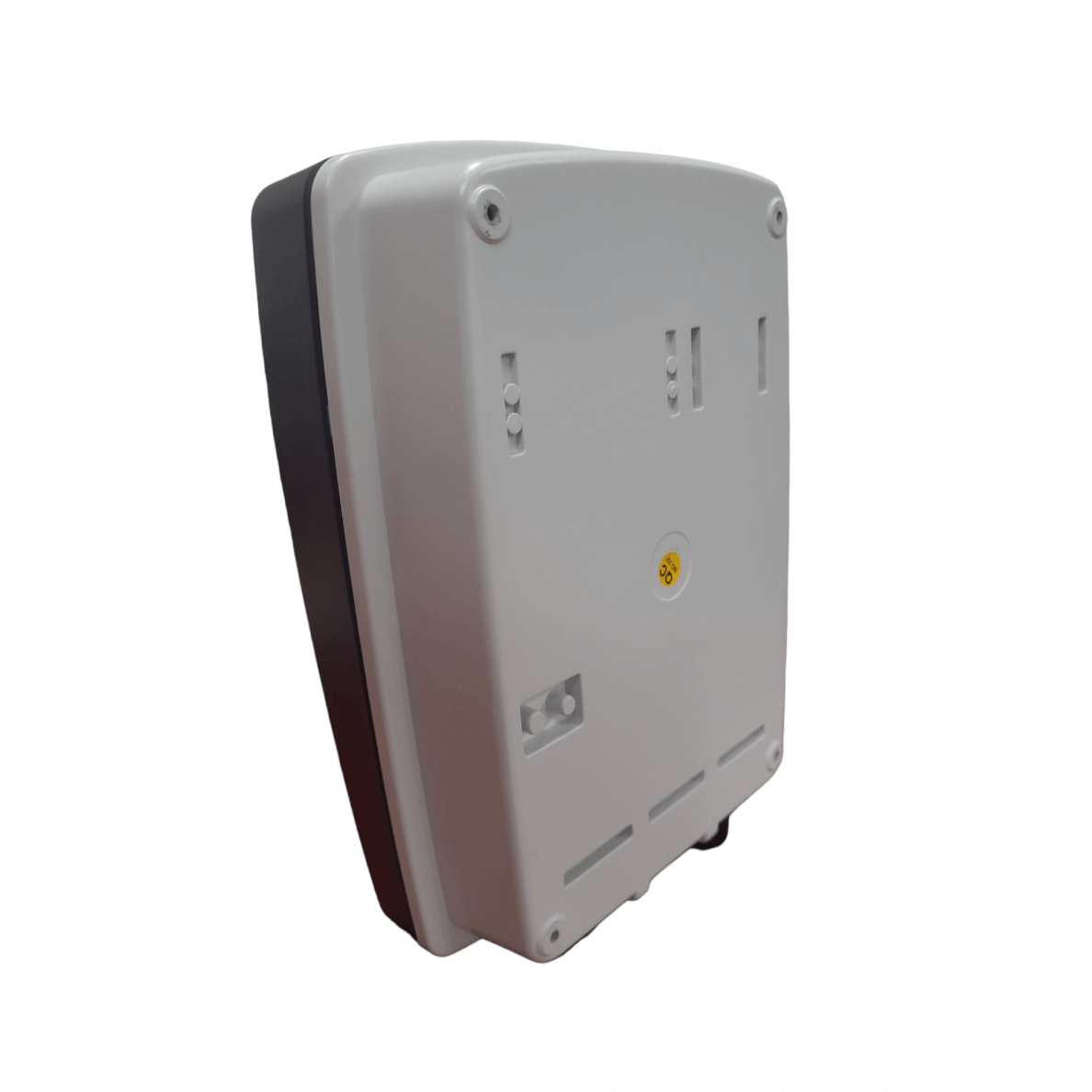

• Mounting Dimensions: 180 mm x 280 mm.
• Weight: Up to 4.1 kg.

Certification: CE certified, ensuring compliance with relevant safety standards.

Funding Eligibility: This charging station qualifies for state subsidies as per the approved support packages for individuals and legal entities.

Warranty:

• Standard warranty period of 2 years.
• Extended warranty options available:
  • +1 year: 20 EUR
  • +2 years: 30 EUR
  • +3 years: 40 EUR

Charging Activation:

• RFID, PIN, or RFID + PIN activation options available for up to 300 users, with an additional cost of 80 EUR.

Operational and Business Aspects

This charging station includes the OCPP protocol, allowing users or businesses to monetize the charging point as a service. Potential operators include retail centers, hospitality providers, restaurants, and individual stakeholders.

Operational Fees:

• A monthly service fee per charging point ranging from 3 to 5 EUR, waived for the first 12 months with a two-year contract.
• Transaction fee of 0.30 EUR for charging initiated via the application.
• A commission of 10% on collected revenue, retained by the service provider.

RFID Cards:

• Upon signing a two-year contract, clients receive three RFID cards for tracking user charging activity, facilitating accurate invoicing. Unlimited additional cards can be issued without transaction fees or revenue-sharing deductions.

Network Operation Service:

• Option to operate multiple charging stations with a network management service for an additional fee of 100 EUR plus VAT per month.

This structure allows for streamlined management and operation of charging stations while maximizing user engagement and revenue potential. For further inquiries or detailed discussions regarding specific functionalities, please feel free to ask.
