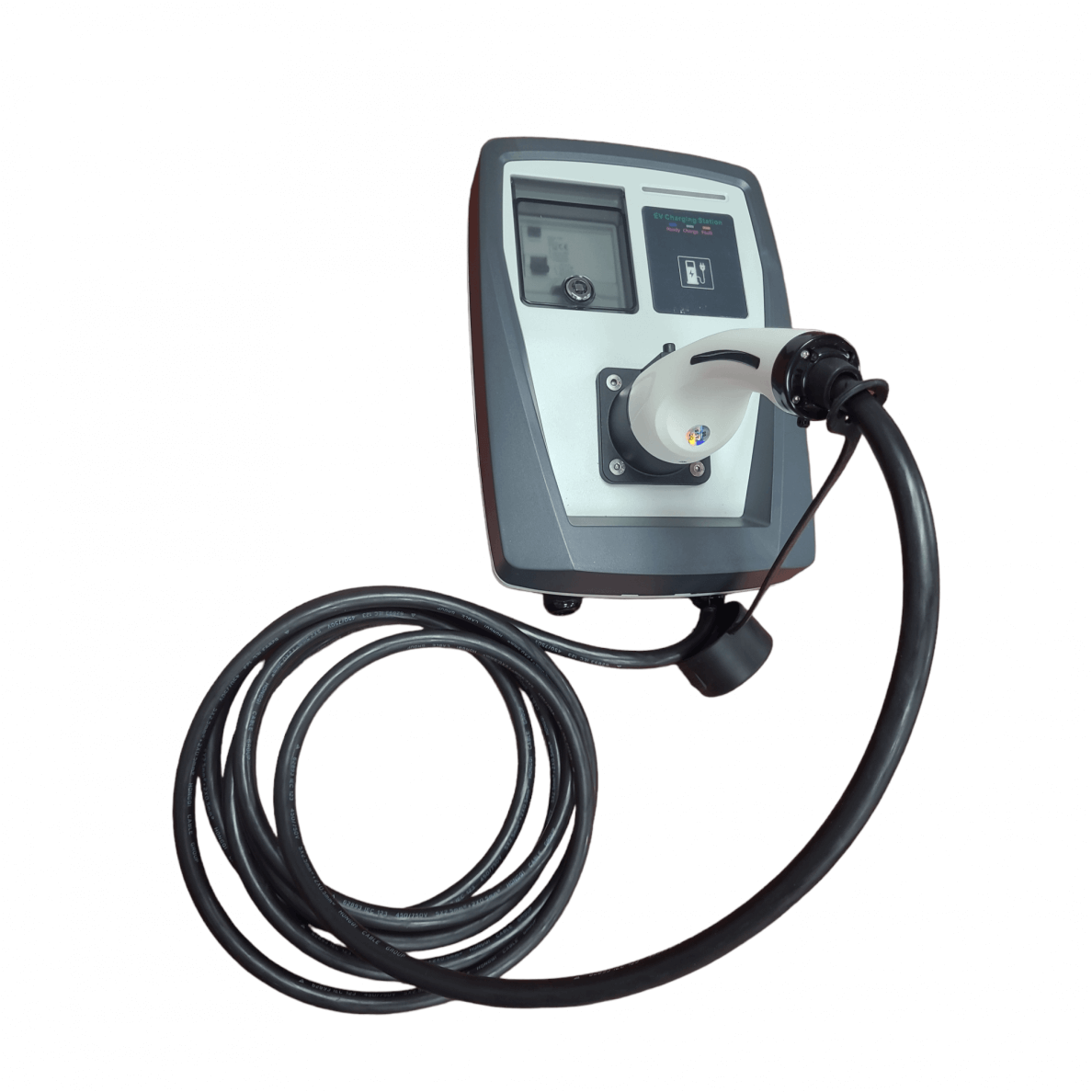

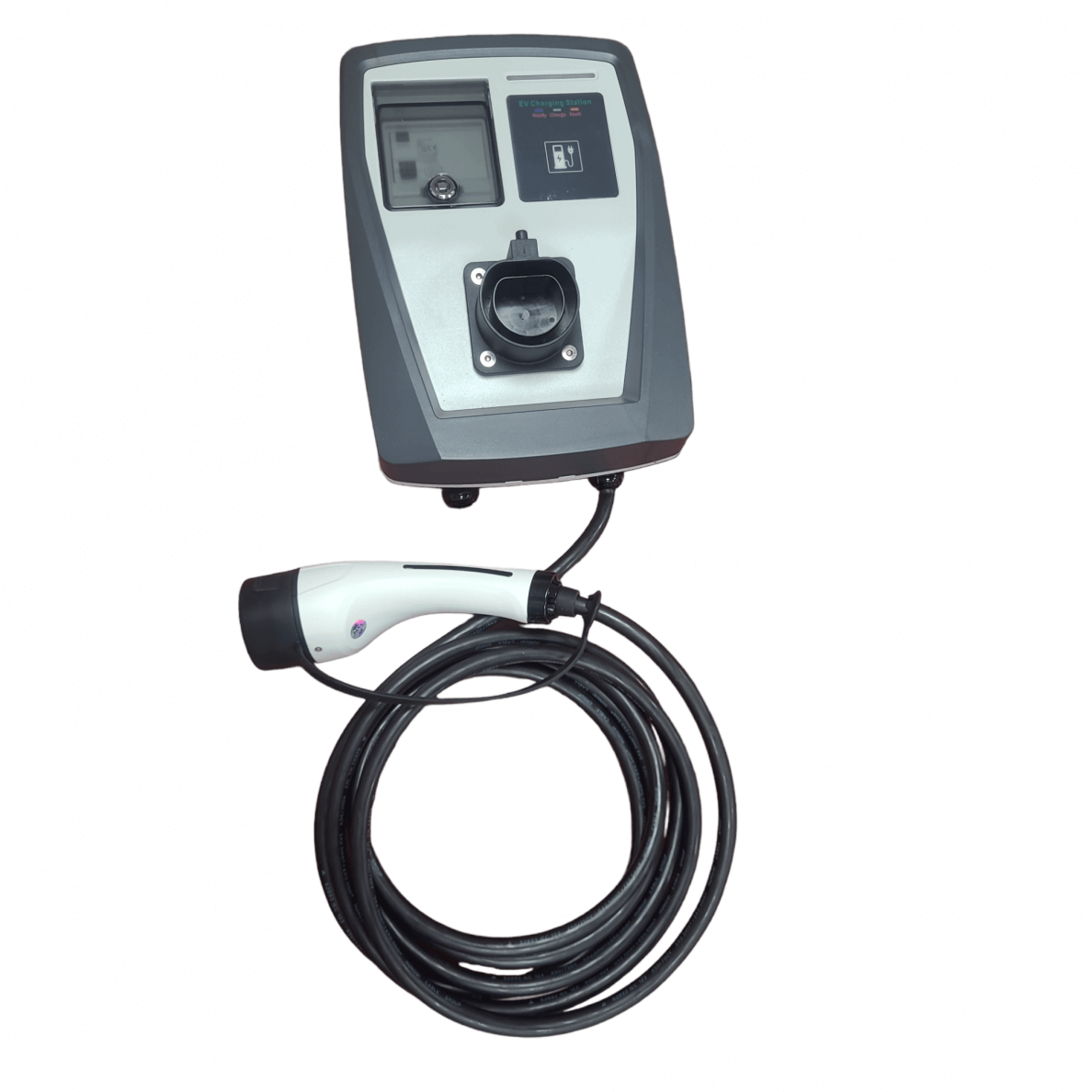

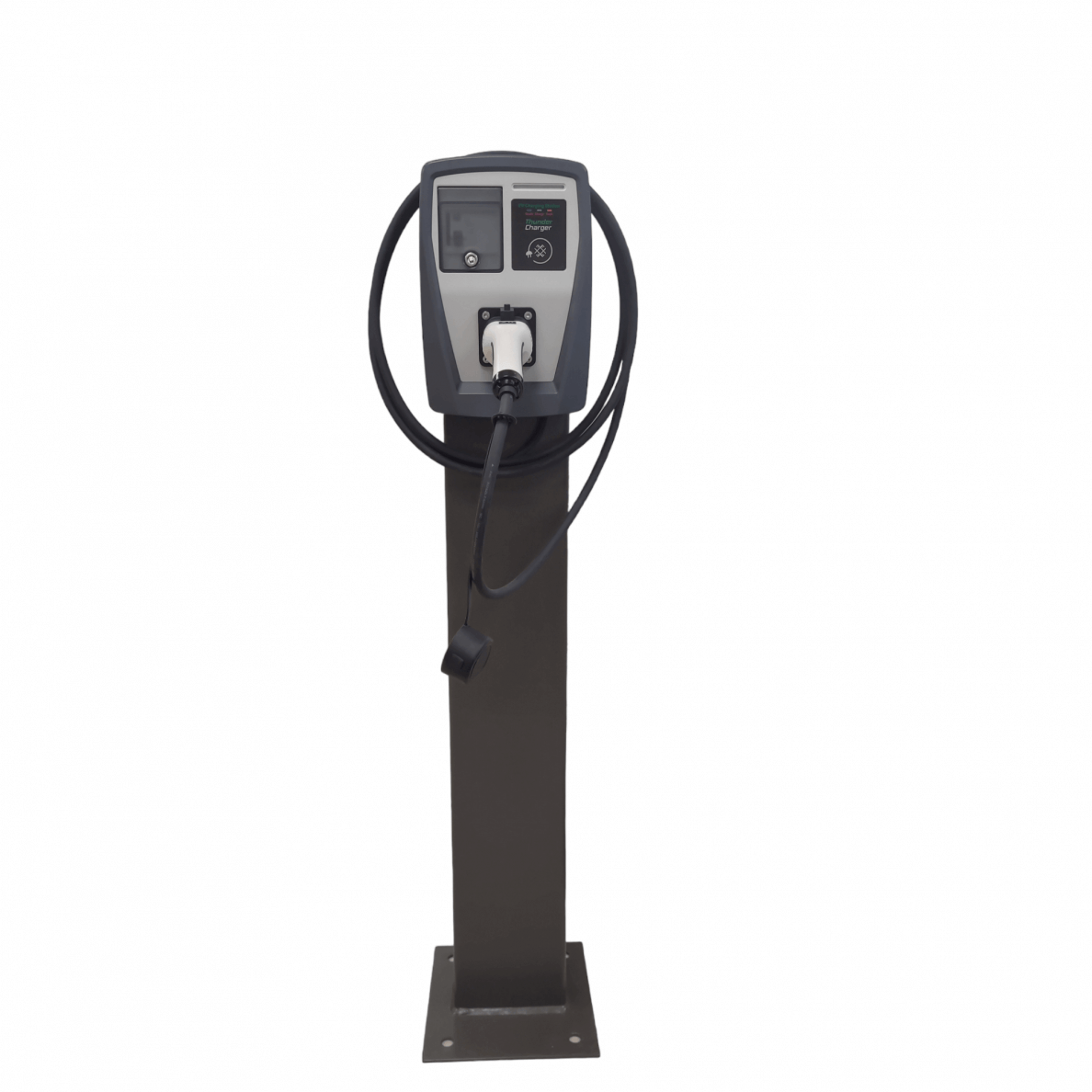

Charging station 3 phase , 22Kw with type 2 cable + balancing power regulation

Technical Specifications

• Connection Type: Mode 3 Type 2, up to 22 kW
• Input Power: 1 or 3-phase, 400 V AC, 50 Hz, 32 A
• Output Power Options:
  • 3-phase 400 V AC, 32 A, up to 22 kW
  • 1-phase 230 V AC, 32 A, up to 7.4 kW
• Connectivity Options:
  • 4G, Wi-Fi, LAN
  • OCPP 1.6

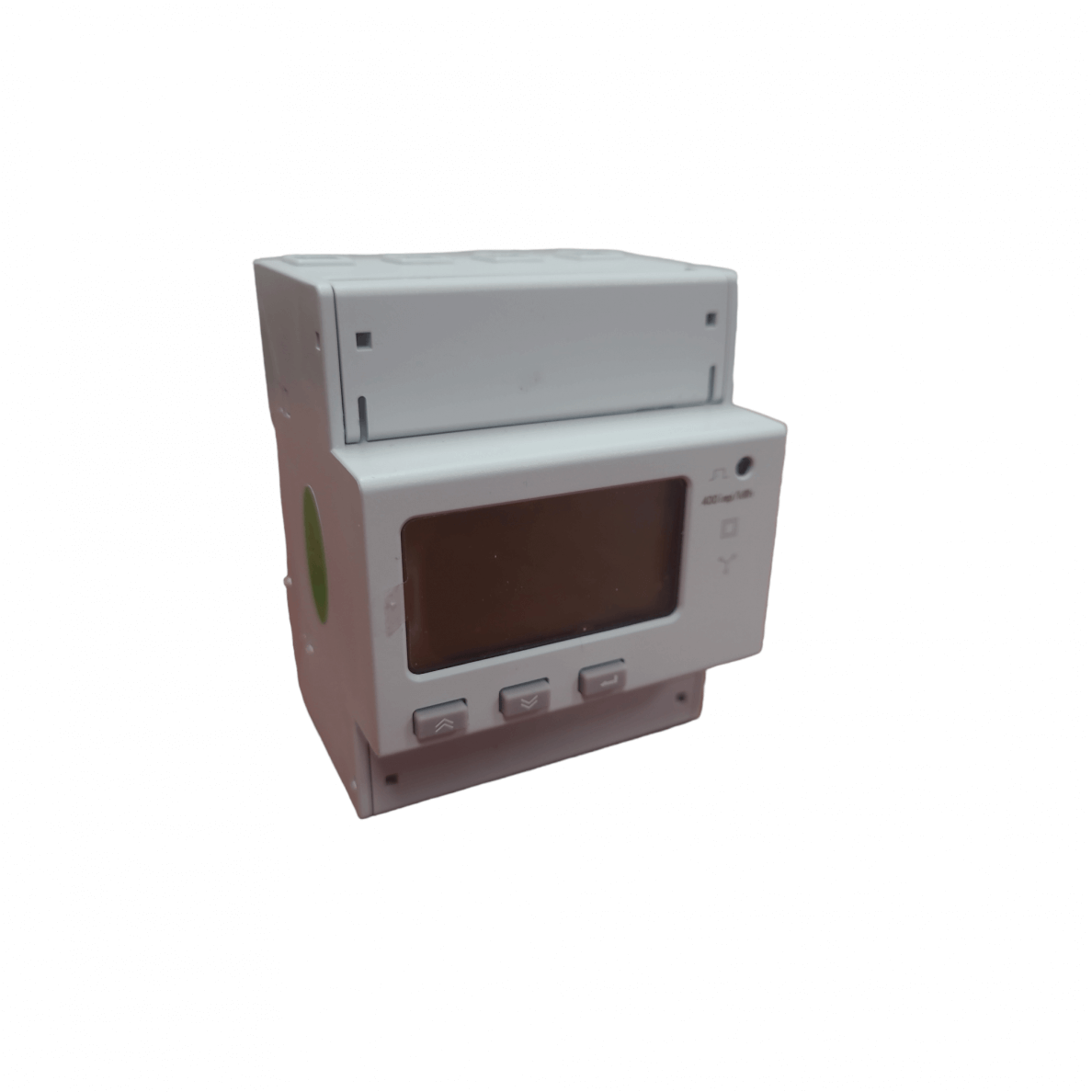

• Dynamic Power Management: Yes
• User Interface: 3-color LED indicators (green, blue, red)
• Control: Managed with RFID
• Mobile App Compatibility: Yes

Safety Features

• Short-circuit protection
• Leakage current protection
• DC leakage detection
• Emergency stop button

Additional Information

• Protection Rating: IP54
• Impact Resistance: IK08

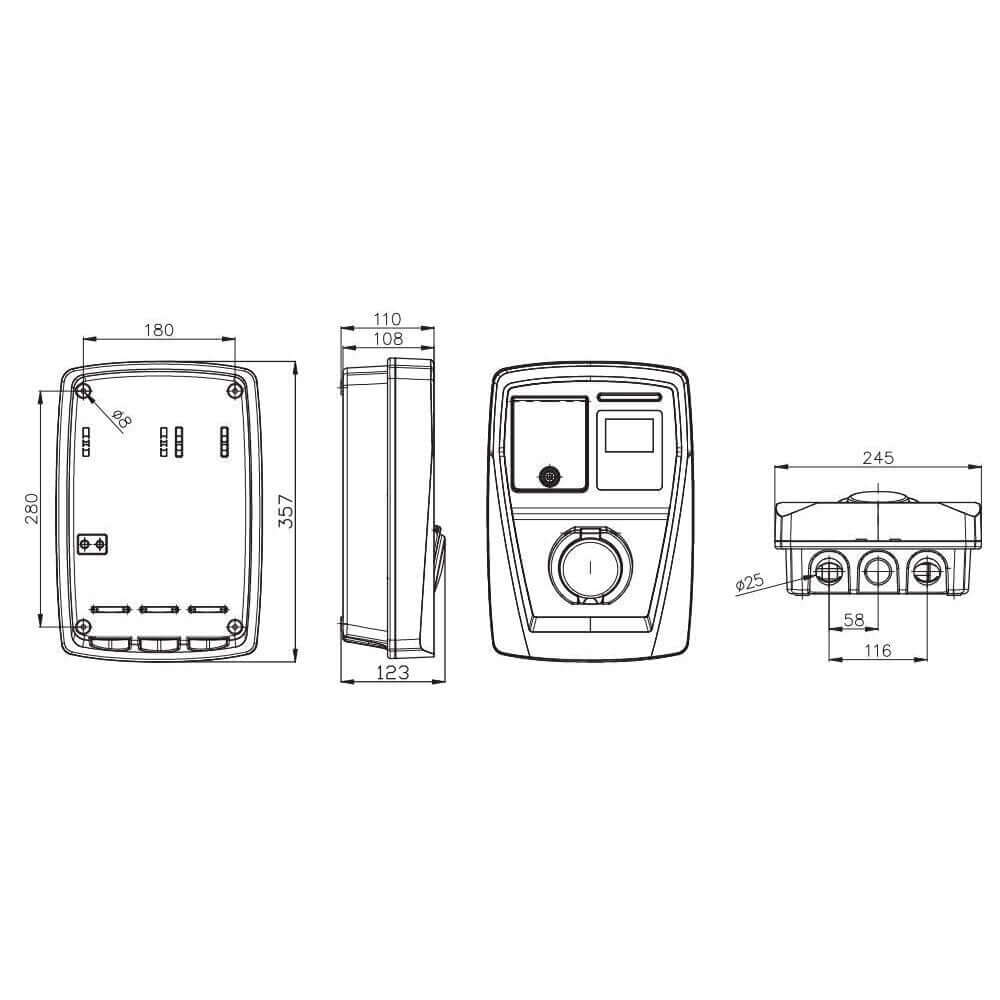

• Dimensions: 357 mm x 245 mm x 123 mm

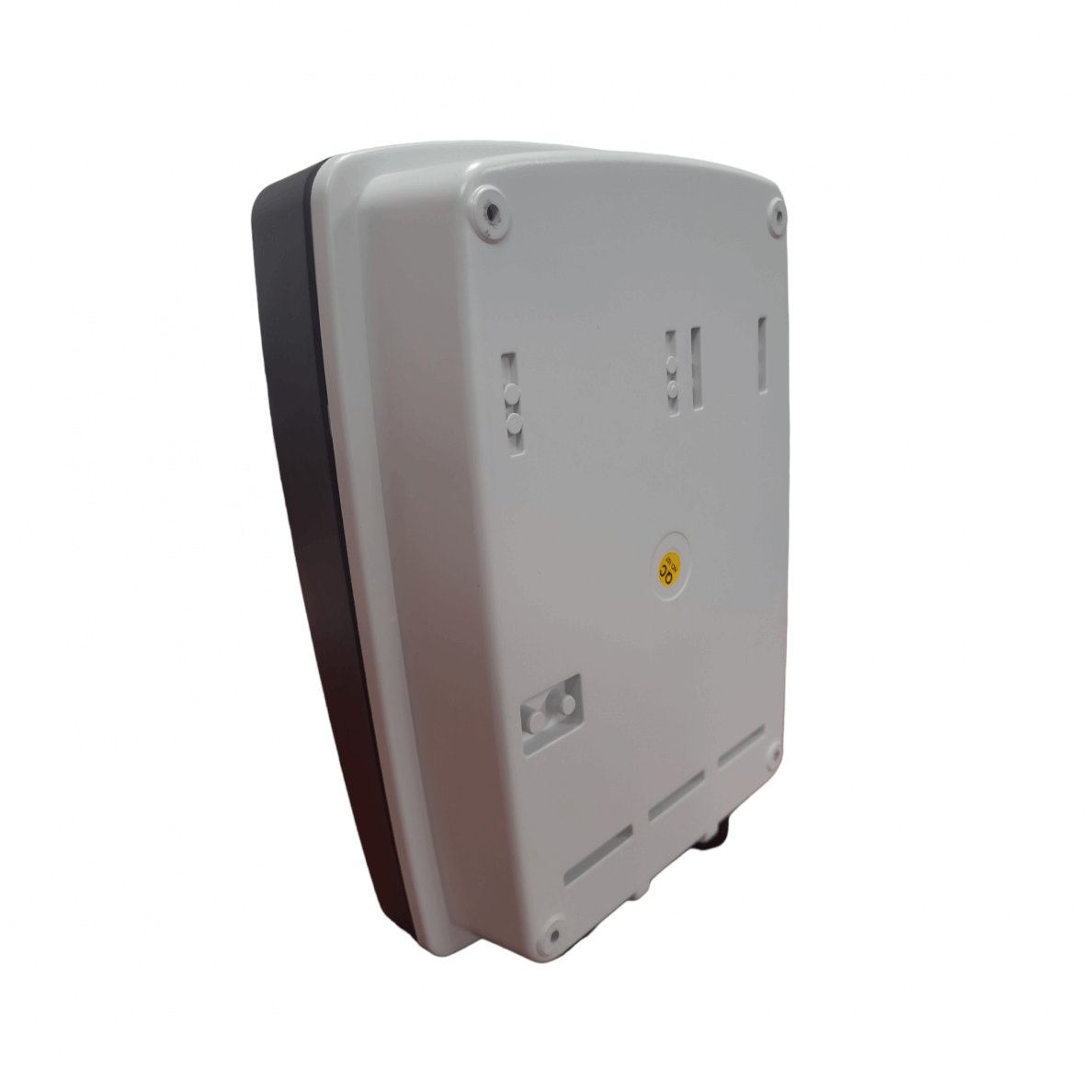

• Mounting Dimensions: 180 mm x 280 mm
• Weight: Up to 4.1 kg
• Certifications: CE certified

Government Support Eligibility

The charging station qualifies for state aid under the approved support package for individuals and legal entities.

Charging Activation Options

• RFID, PIN, or RFID+PIN (up to 300 users); additional €80

Warranty

• Standard: 2 years
• Extended warranty options:
  • €20 for +1 year
  • €30 for +2 years
  • €40 for +3 years

Business Opportunities

• The station supports OCPP protocol, allowing residents or businesses to offer it as an electric vehicle charging point.
• Additional services can be provided by businesses, shopping centers, accommodation providers, and restaurants.

Fees and Charges

• Service Fee: €3-5/month per charging point (waived for the first 12 months with a 2-year contract)
• Transaction Fee: €0.30 for charging via the app
• Revenue Share: 10% of collected funds taken by the service provider
• Free provision of 3 RFID cards for reporting individual charging sessions, with unlimited additional cards for tracking and invoicing.
