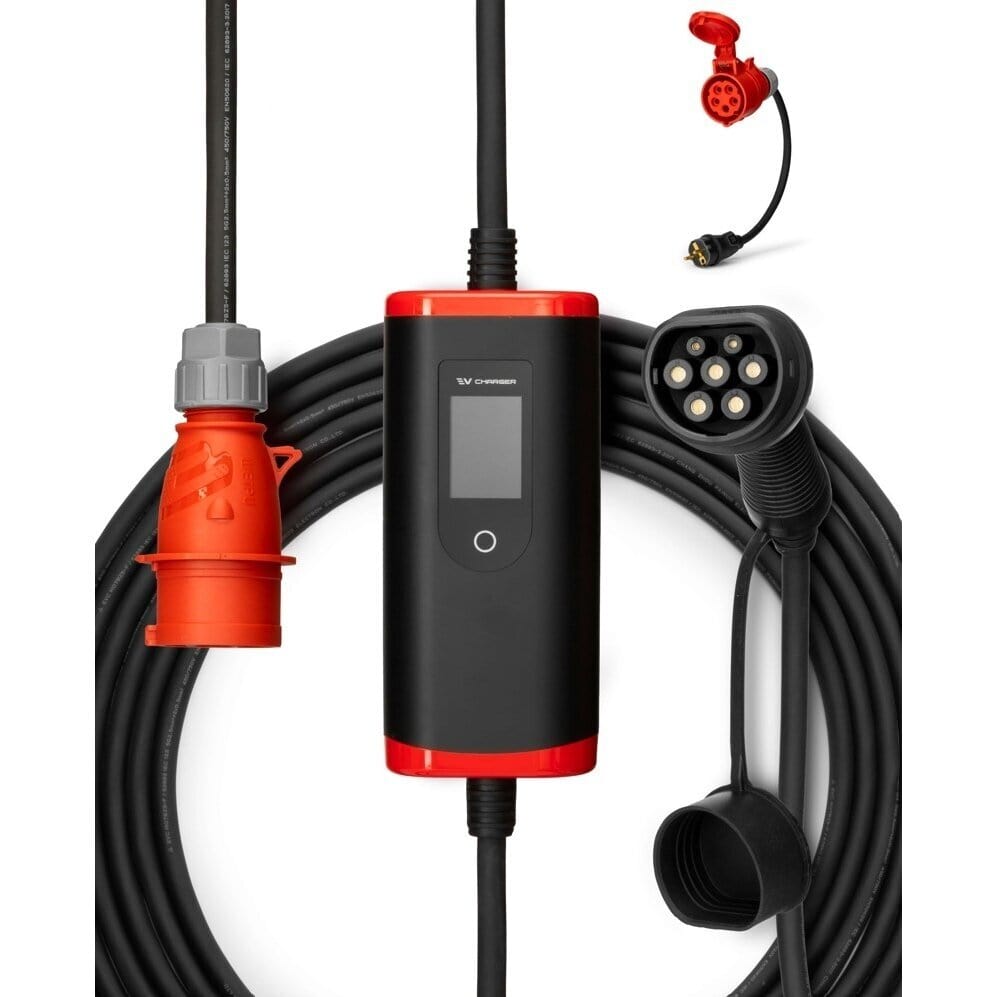

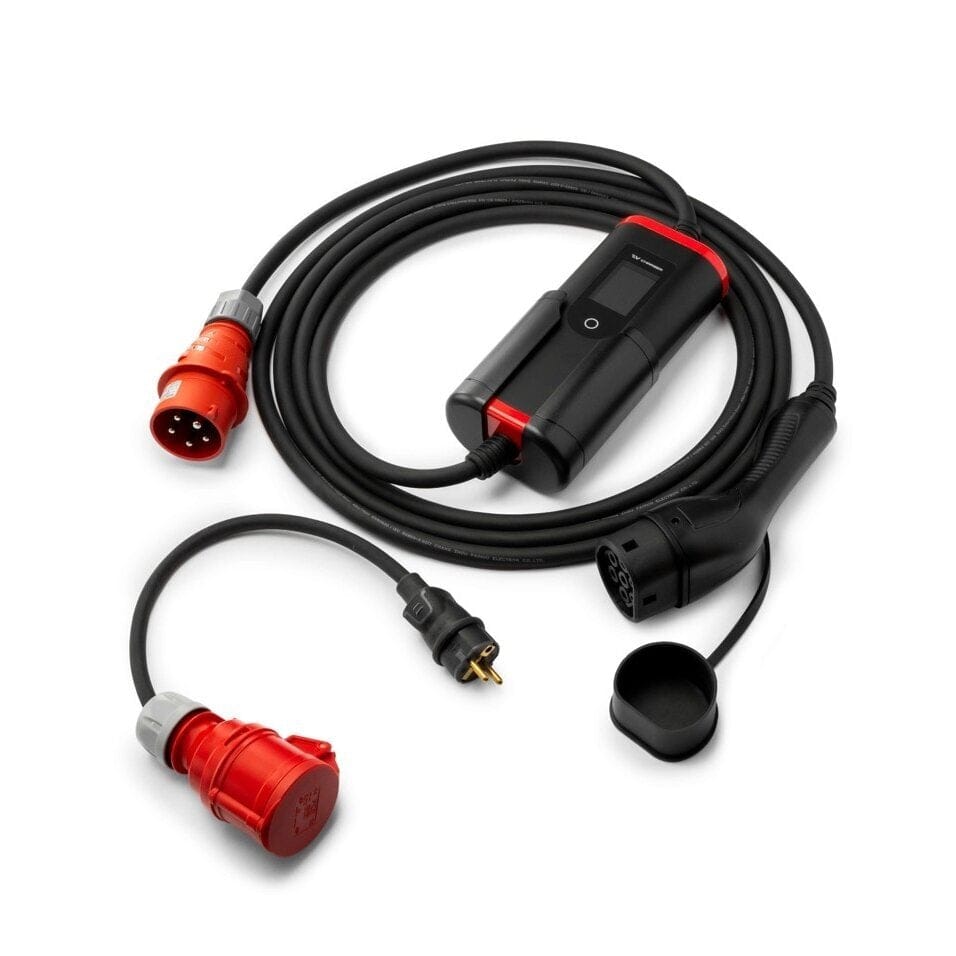

Charging cable 480 V - Type 2 ( 16A, 3 phases 11 kW)

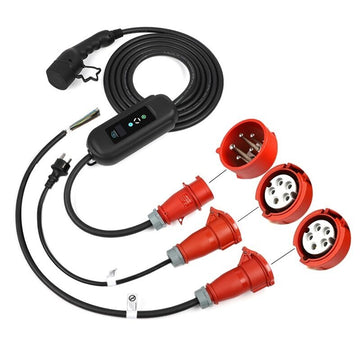

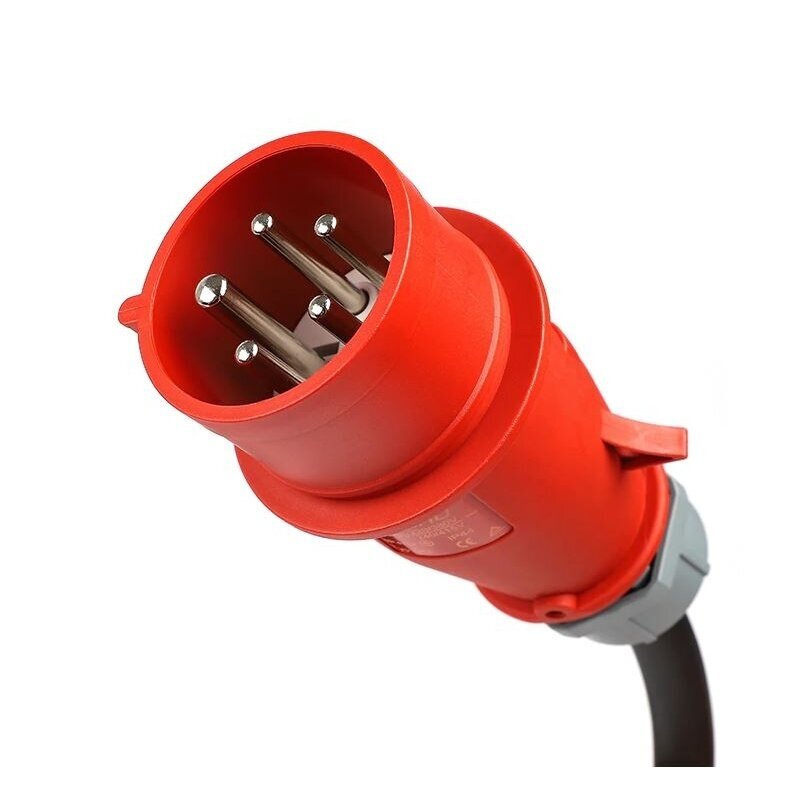

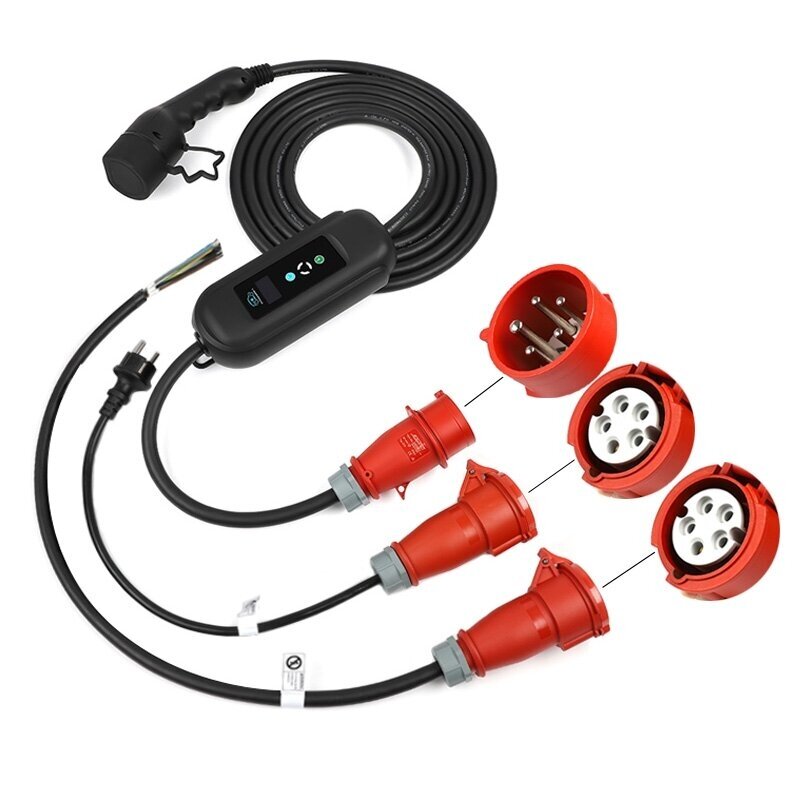

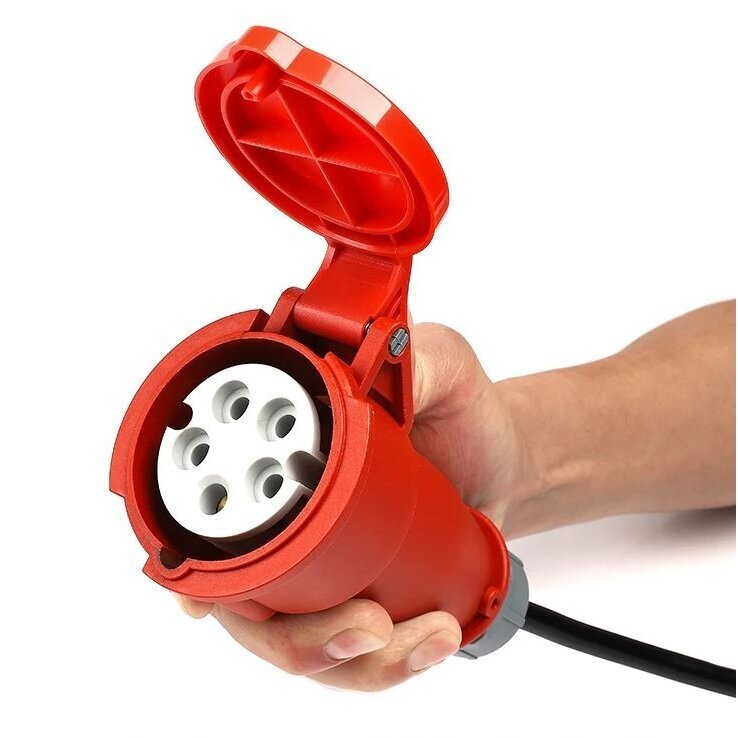

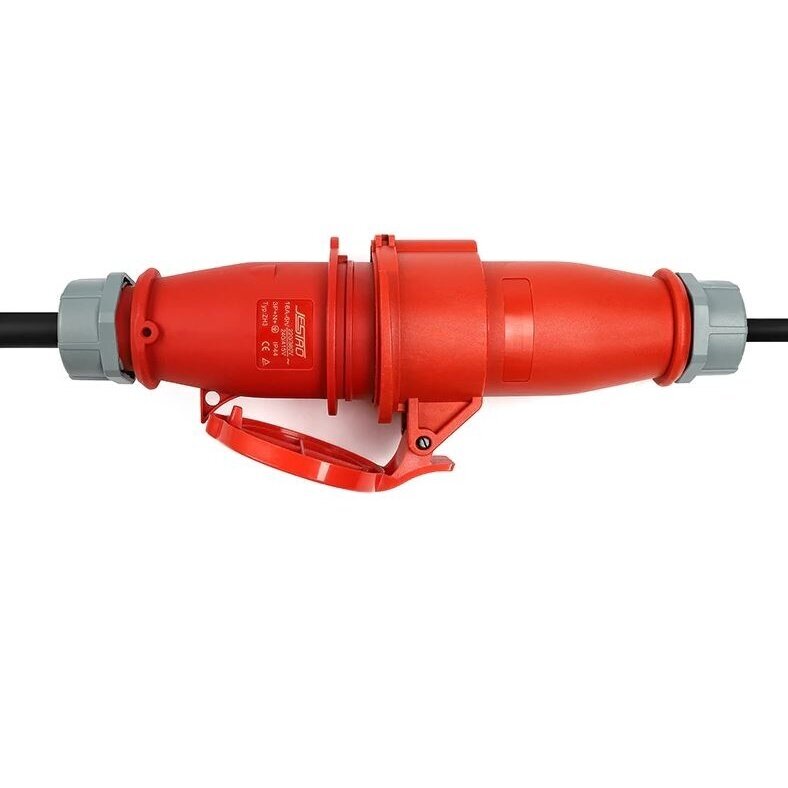

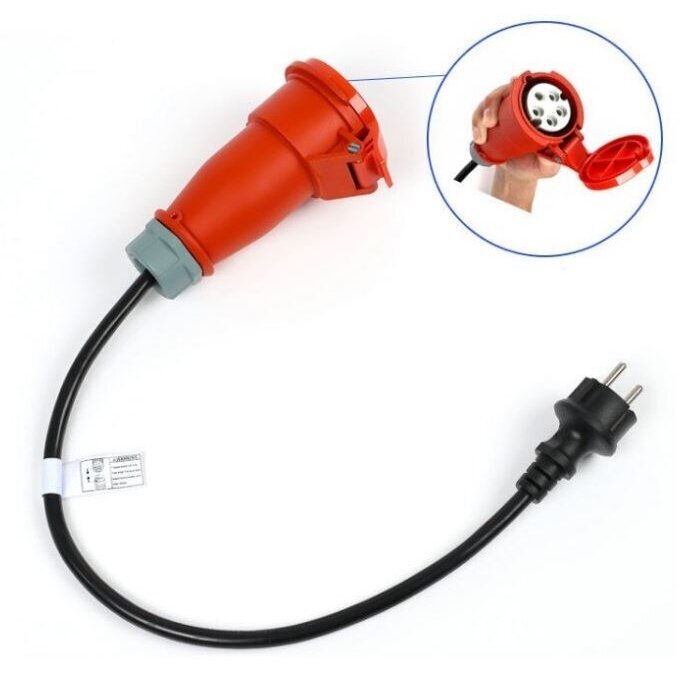

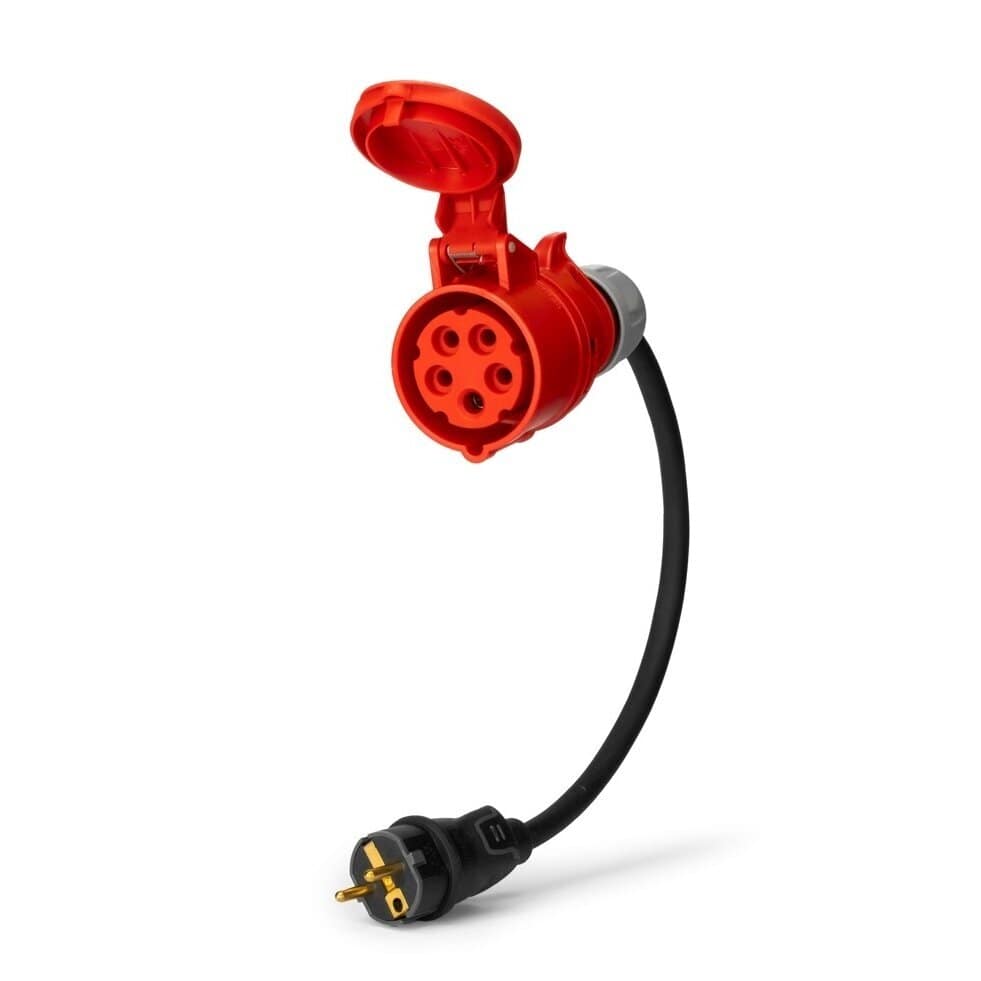

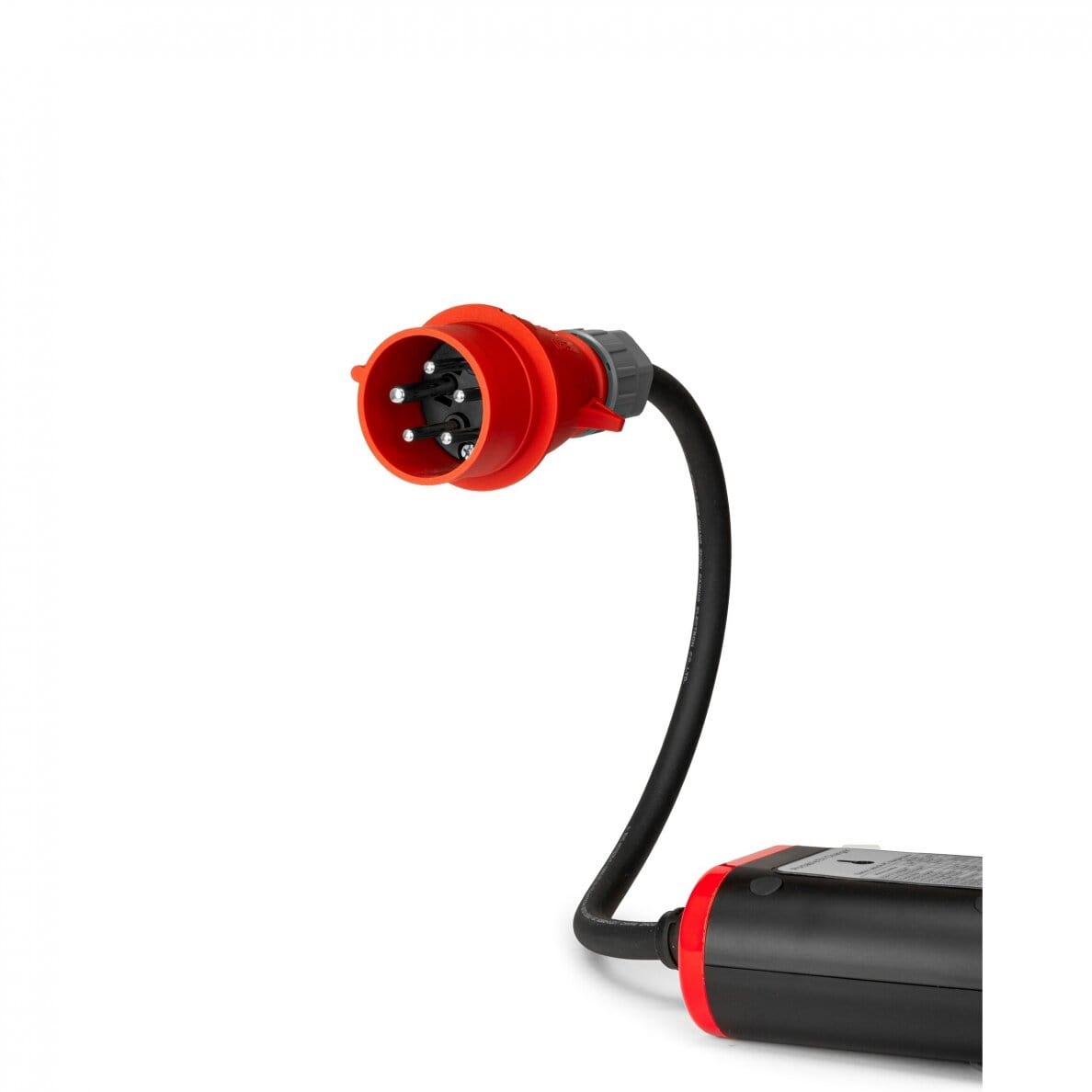

Electric Vehicle Charging Cable 16A, 3 Phases, from 220V and Three-Phase Sockets to Type 2 Connector

Specifications:

• Plug Type: IEC62196 Type 2
• Power Input: 480V AC
• Output Power: 11 kW

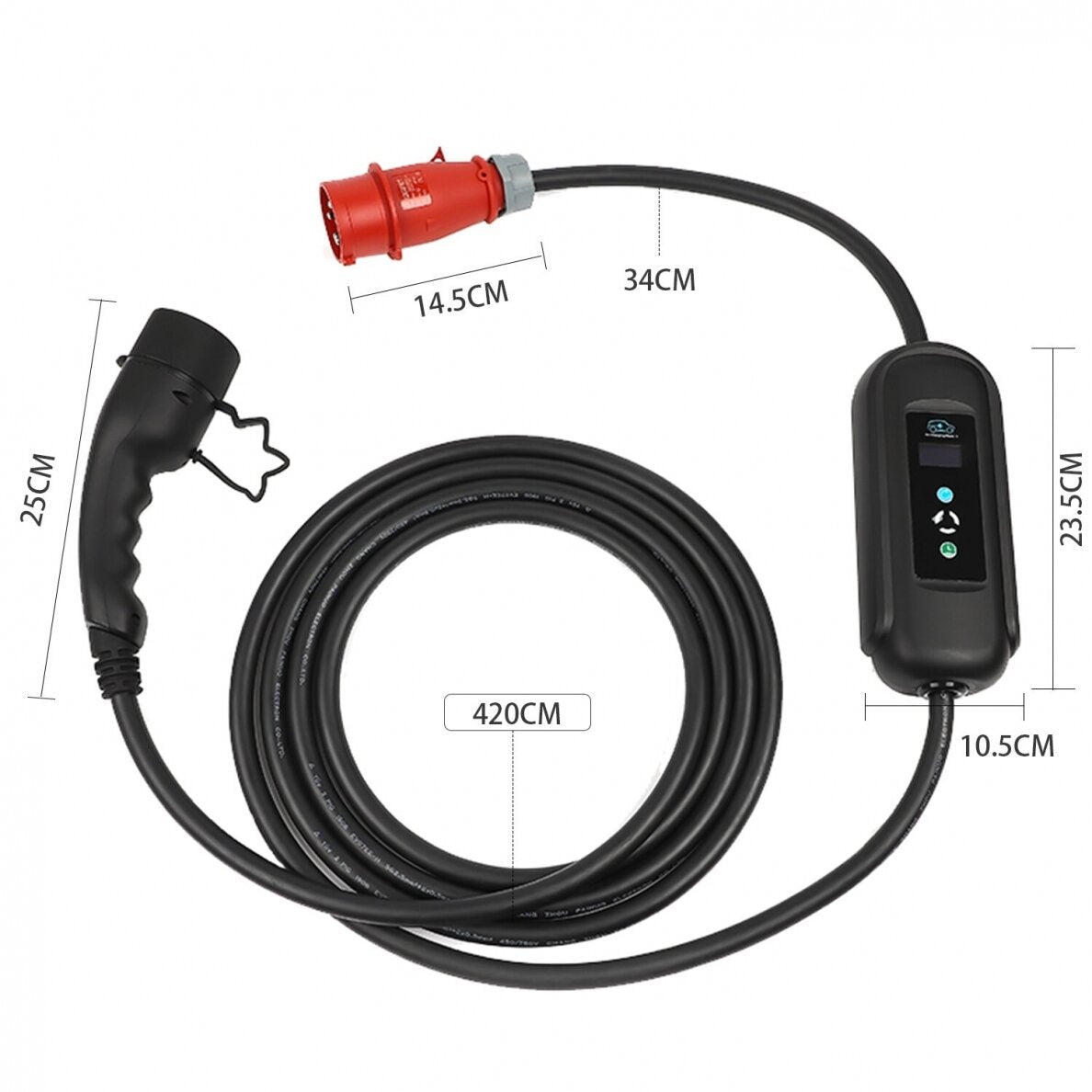

• Cable Length: 5-10 meters
• Protection Degree: IP54 (operating condition)
• Contact Material: Copper alloy, silver + thermoplastic upper
• Mechanical Lifespan: Over 10,000 plug/unplug cycles
• Impact Resistance: Capable of withstanding a 1-meter drop and 2-ton vehicle pressure
• Insulation Resistance: > 1000MΩ (DC500V)
• Temperature Rise at Terminal: < 50K
• Flame Resistance Rating: UL94V-0

Features:

• The display shows real-time charging status data (charging duration, charging power in kW, temperature, energy consumed in kWh).

• This is a compact portable electric vehicle charging cable, ideal for economical charging at work, during travel, or at other locations with a household socket.

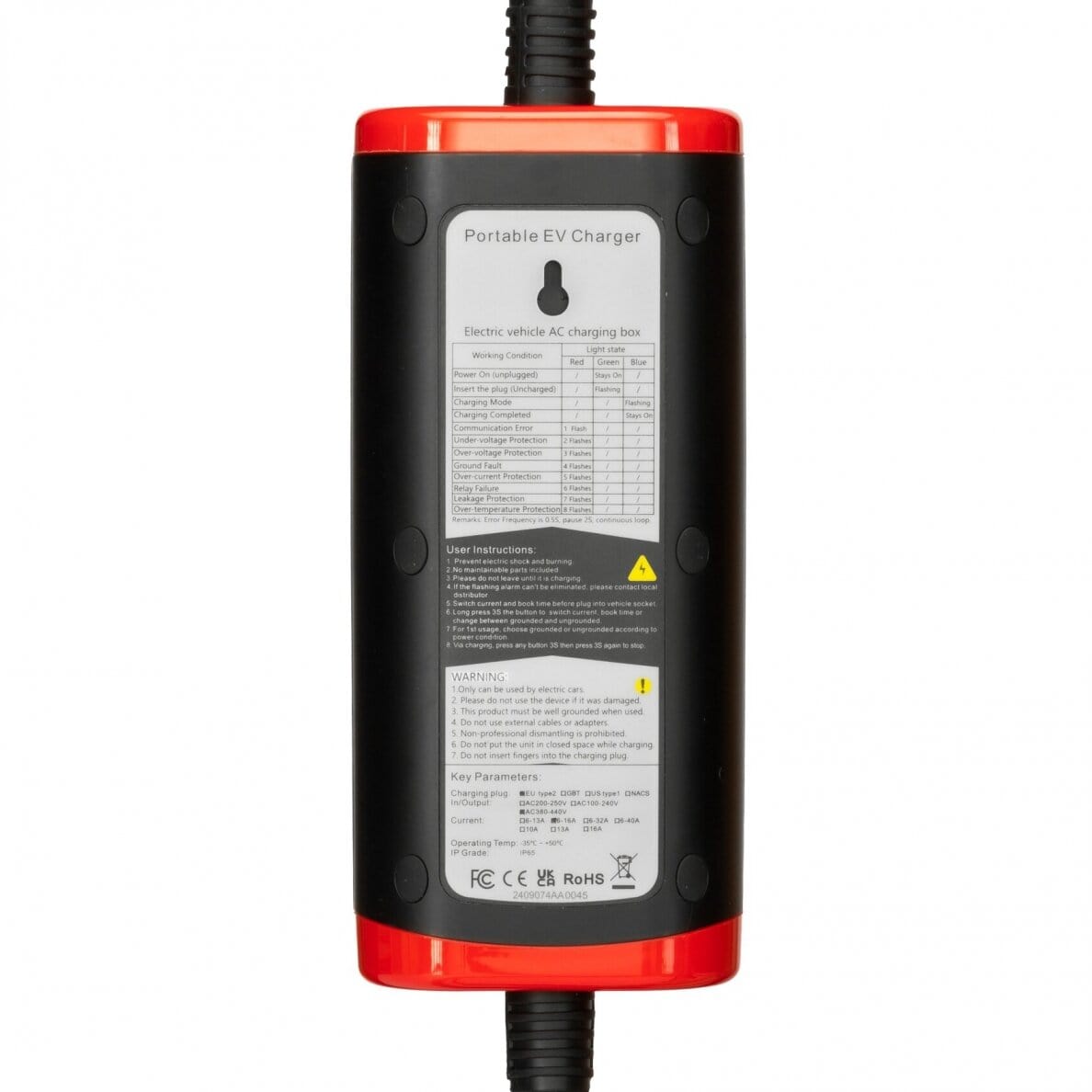

Safety Features:

1. Leakage protection
2. Overvoltage or undervoltage protection
3. Overcurrent protection
4. Surge protection
5. Thermal protection

Temperature Protection: The charging process is safe! If the control box temperature exceeds 85°C, the protection will stop charging and will resume when the temperature drops to 65°C.

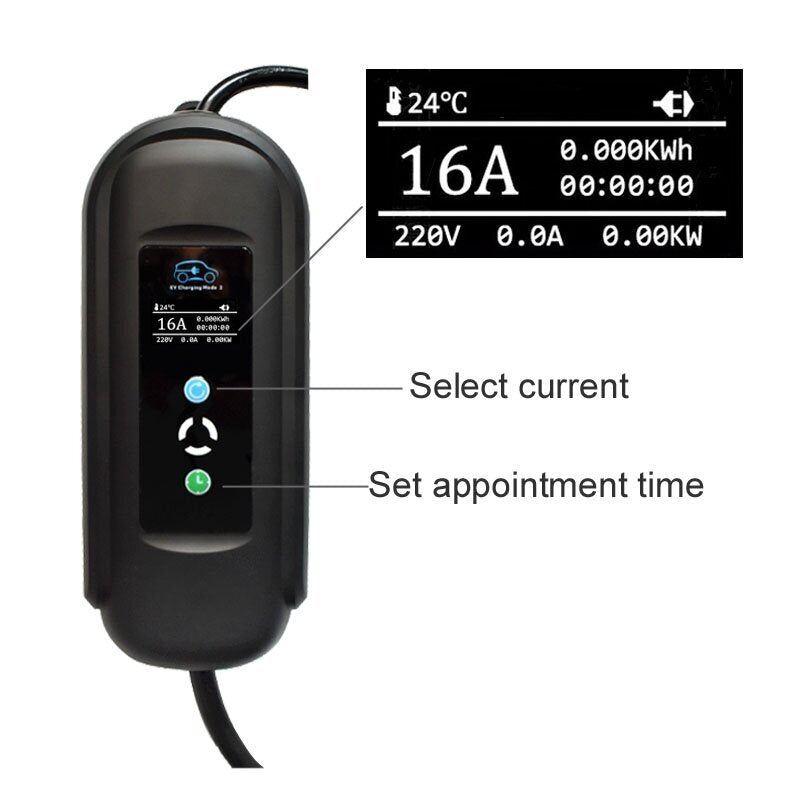

LED Display Shows:

1. Charging temperature
2. Charging current
3. Charging voltage
4. Energy charged in kW/h
5. Charging duration
6. Adjustable current (10, 13, 16A)
7. Charging speed in kW

Usage Instructions: The blue button is for adjusting the current. To change the current, press the blue button. When adjusting the current, the power plug is always connected, and the Type 1 SAE J1772 (or Type 2) plug is disconnected. Once you set the desired current, connect it and start charging.

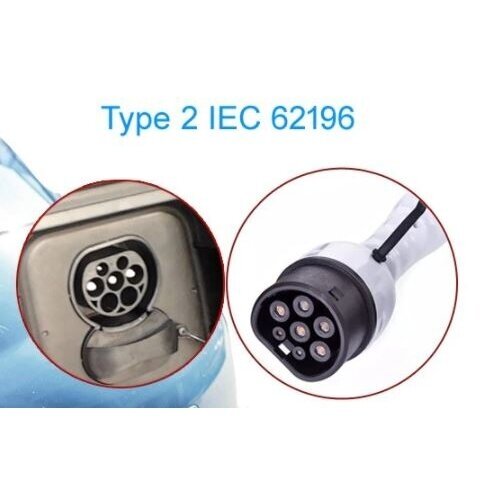

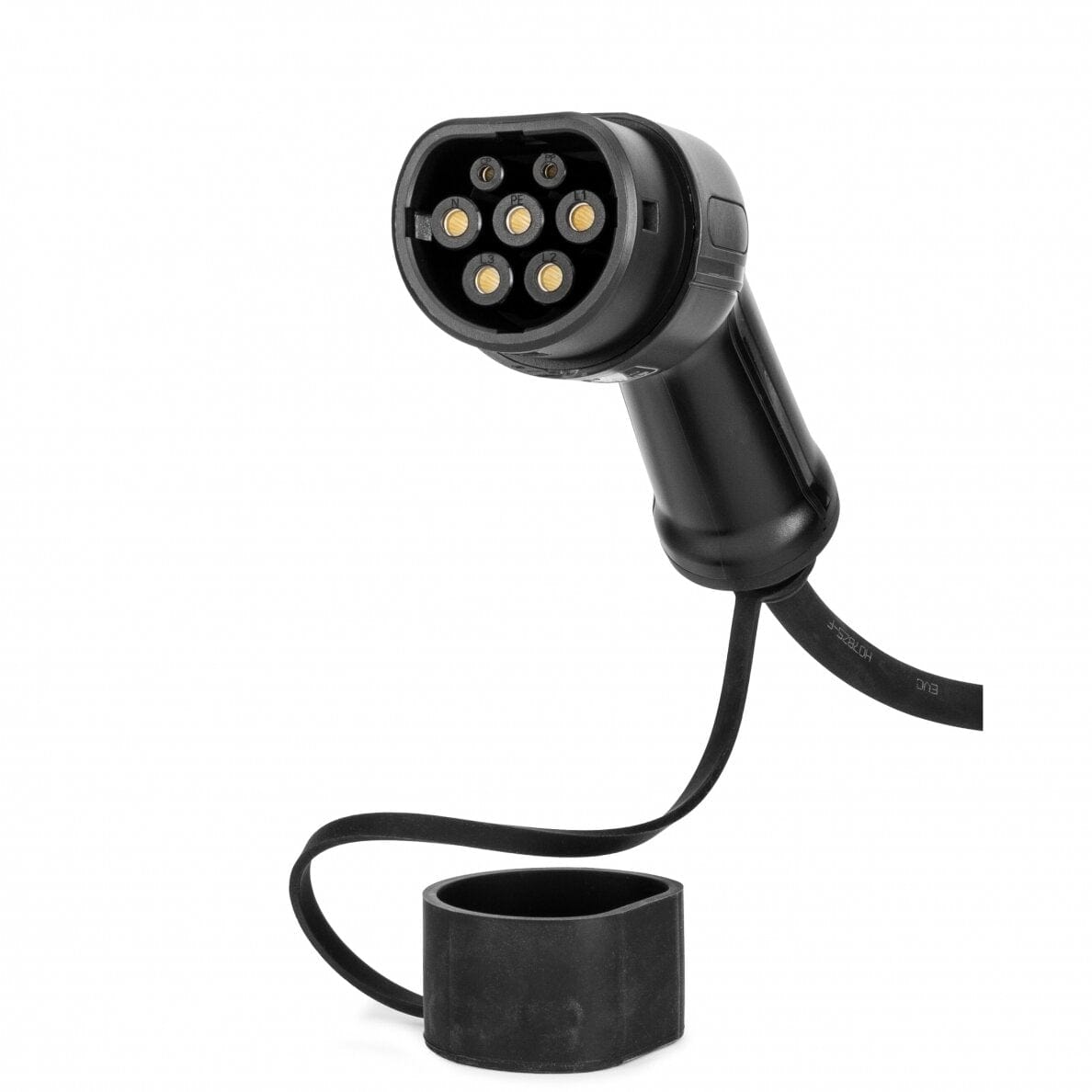

Type 2 Connector: This European standard is used by electric vehicles manufactured in Europe, such as Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, as well as vehicles like Volkswagen e-Golf and BMW i3 intended for the European market.
