Wallbox charging station WB207 7kW with Wi-fi function with type 2 socket

WB20 Charging Station

Introducing the WB20 Charging Station, a 1-phase, 7 kW solution equipped with a Type 2 socket, perfect for charging all electric vehicles and plug-in hybrids. This compact and efficient charger is designed to enhance your EV charging experience.

Key Features:

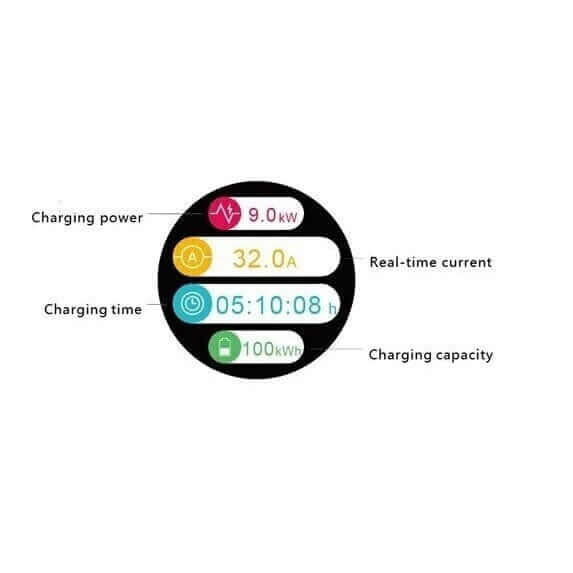

• User-Friendly LCD Screen: Easily manage charging functions, including duration, power settings, and consumption history.

• Durable Construction: Made from ABS+PC plastic, ensuring longevity and resilience.

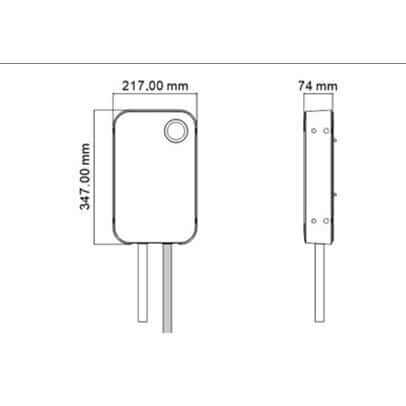

• Compact Dimensions: Measures 347 x 217 x 74 mm and weighs between 5-9 kg, making it ideal for various installations.

• Input Voltage: 230V (with A, B, C phases, neutral, and PE).

• Input Current: 32A (1-phase) with a frequency of 50/60 Hz.

• Maximum Power Output: 7 kW with an output voltage of 230V/400V AC and an output current of 32A.

• Measurement Functionality: Features measurement capabilities with a precision class of 2.

• Energy Efficiency: Standby power consumption of ≤10W.

Reliability and Standards:

• Compliance: Meets EN 61851-1:2019 standards.
• MTBF: 100,000 hours for dependable performance.

Environmental Conditions:

• Operating Temperature: -25°C to +55°C.
• Operating Humidity: 5% to 95%.
• Maximum Operating Altitude: < 2000m.
• Protection Rating: IP66 for dust and water resistance.

Safety Features:

• Overvoltage Protection
• Under-voltage Protection
• Overload Protection
• Short Circuit Protection
• Leakage Protection
• Ground Fault Protection
• Overheating Protection
• Lightning Protection

Additional Features:

• LED Indicator: Provides visual feedback during operation.
• RFID Capability: Available for use with RFID versions for secure access.

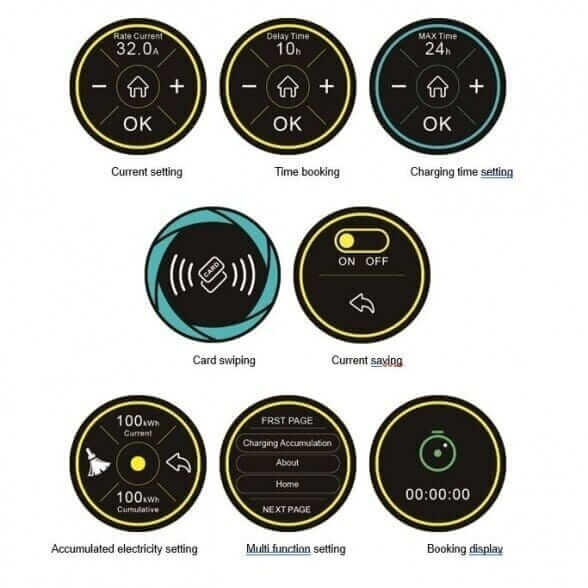

• Touch Screen Control: Intuitive touch screen interface for easy operation.

Elevate your charging experience with the WB20 Charging Station—reliable, efficient, and designed for the future of electric mobility!
