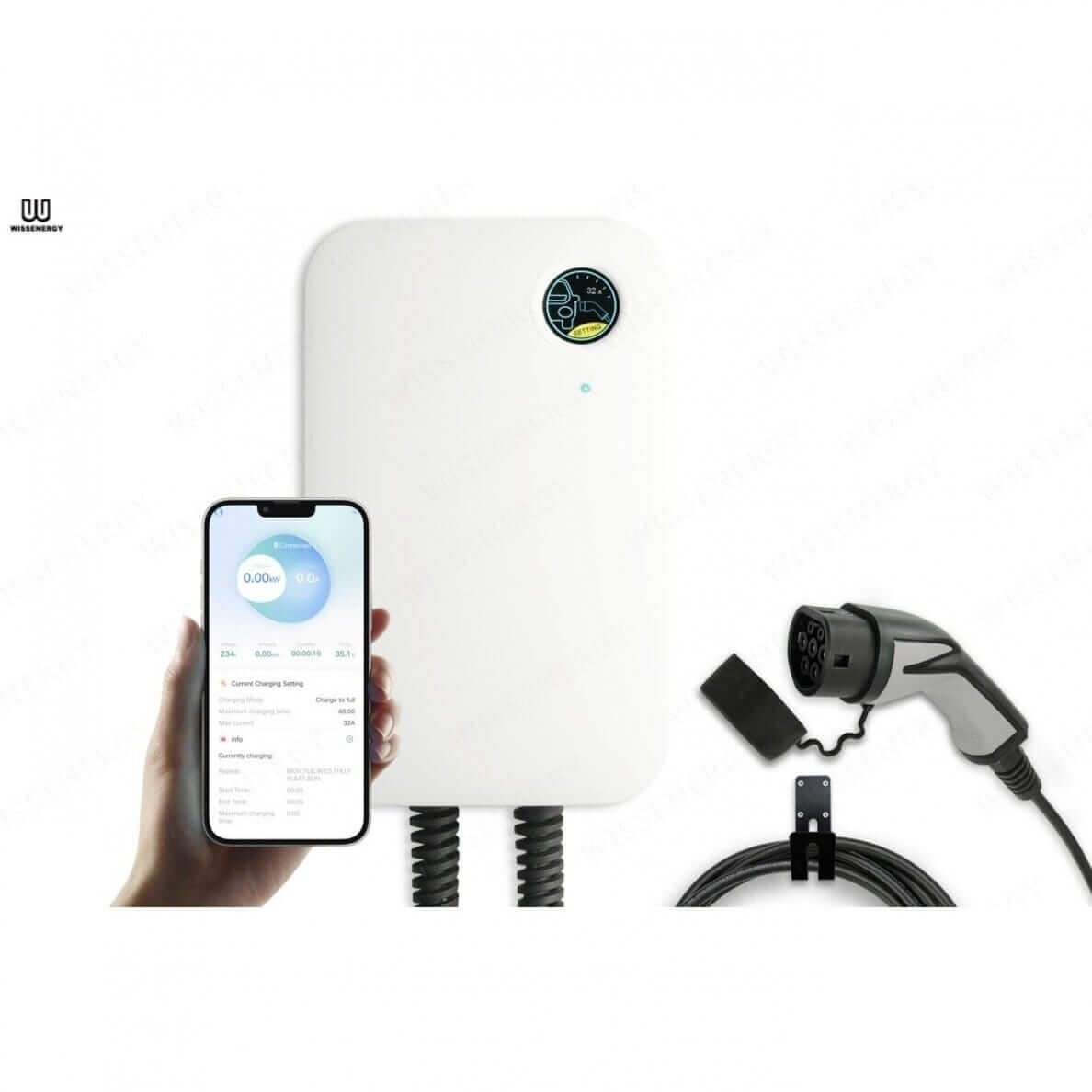

WB20 3-phase wallbox charging station with Wi-fi function
WB20 Charging Station Specifications - technical details
Model: WB20
Type: 3-phase
Power Specifications:
- Nominal Power: 11 or 22 kW
- Input Voltage: 230V/400V AC (three-phase, five-wire system: Phase A, Phase B, Phase C, Neutral, PE)
- Input Current: 16 A
- Frequency: 50 Hz / 60 Hz
- Output Voltage: 230V/400V AC
- Output Current: 32 A
- Maximum Power: 22 kW
- Standby Power: ≤10 W
Charging Connector:
- Type: Type 2
- Cable Length: 5 m
Dimensions & Weight:

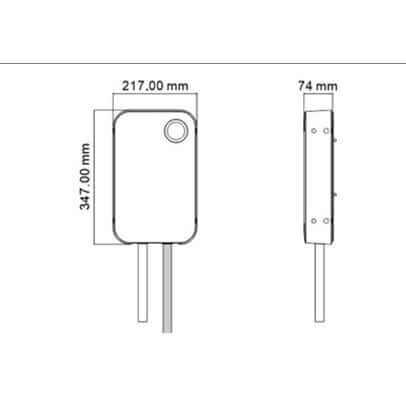

- Size: 347 x 217 x 74 mm
- Weight: 5 - 9 kg
Material:
- Housing: ABS + PC plastic
Display & Control:

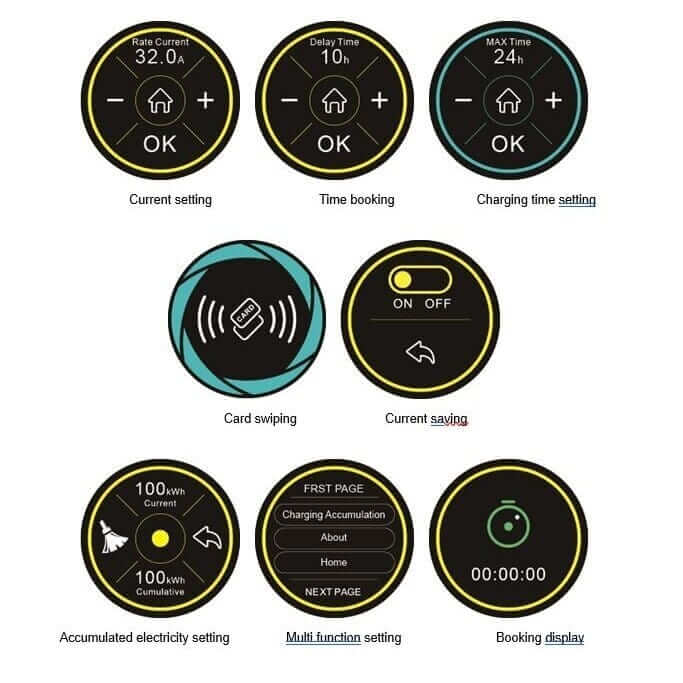

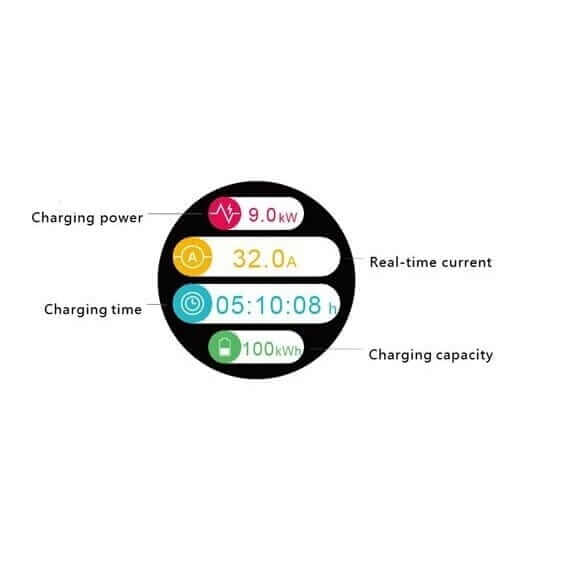

- LCD Screen: Yes (for controlling charging functions such as duration, power, and consumption history)
- Touch Screen: Yes
- LED Indicator: Yes
- Measurement Function: Yes
- Measurement Accuracy Class: 2

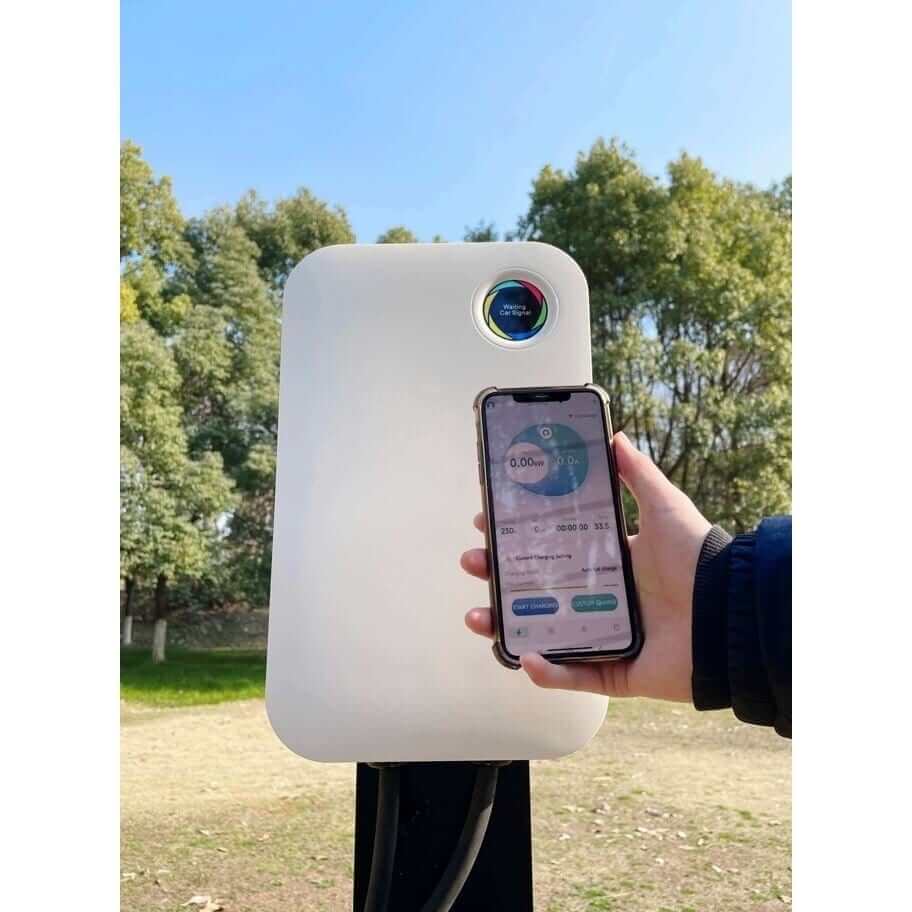

- Wi-Fi Control: Yes (via app)
Environmental Specifications:
- Operating Temperature: -25℃ to +55℃
- Operating Humidity: 5% to 95%
- Altitude: <2000 m
Protection Ratings:
- IP Rating: IP66
Safety Features:
- Overvoltage Protection: Yes
- Undervoltage Protection: Yes
- Overcurrent Protection: Yes
- Short-Circuit Protection: Yes
- Leakage Protection: Yes
- Ground Fault Protection: Yes
- Overheating Protection: Yes
- Lightning Protection: Yes
Standards:
- Compliance: EN 61851-1:2019
- MTBF: 100,000 hours
Additional Features:
- RFID Capability: Available with RFID version
- App Control: Available with app version
This charging station is designed for efficient and safe electric vehicle charging, equipped with an intuitive interface and robust safety features. If you need more information or have specific questions, feel free to ask!
