11 kW ACH-QE11 charging station with Type 2 socket

11 kW EV Charging Station with WiFi, Bluetooth, and RFID (Type 2)

This 11 kW electric vehicle charging station is designed for safe, fast, and convenient charging at home, the office, or commercial parking lots. Supporting a 3-phase 400 V power supply and delivering up to 11 kW of charging power, the station allows you to charge your electric vehicle significantly faster than a standard household outlet.

Integrated WiFi and Bluetooth connectivity enable control via a mobile app, allowing you to adjust the charging current, set schedules, monitor charging progress, and perform over-the-air (OTA) software updates. RFID authentication provides added security, ensuring that only authorized users can initiate charging. Key features

✅ Power up to 11 kW

✅ Compatible with all electric vehicles meeting European standards

✅ Integrated WiFi and Bluetooth

✅ RFID card authentication

✅ 2.8-inch LCD screen

✅ Adjustable charging current

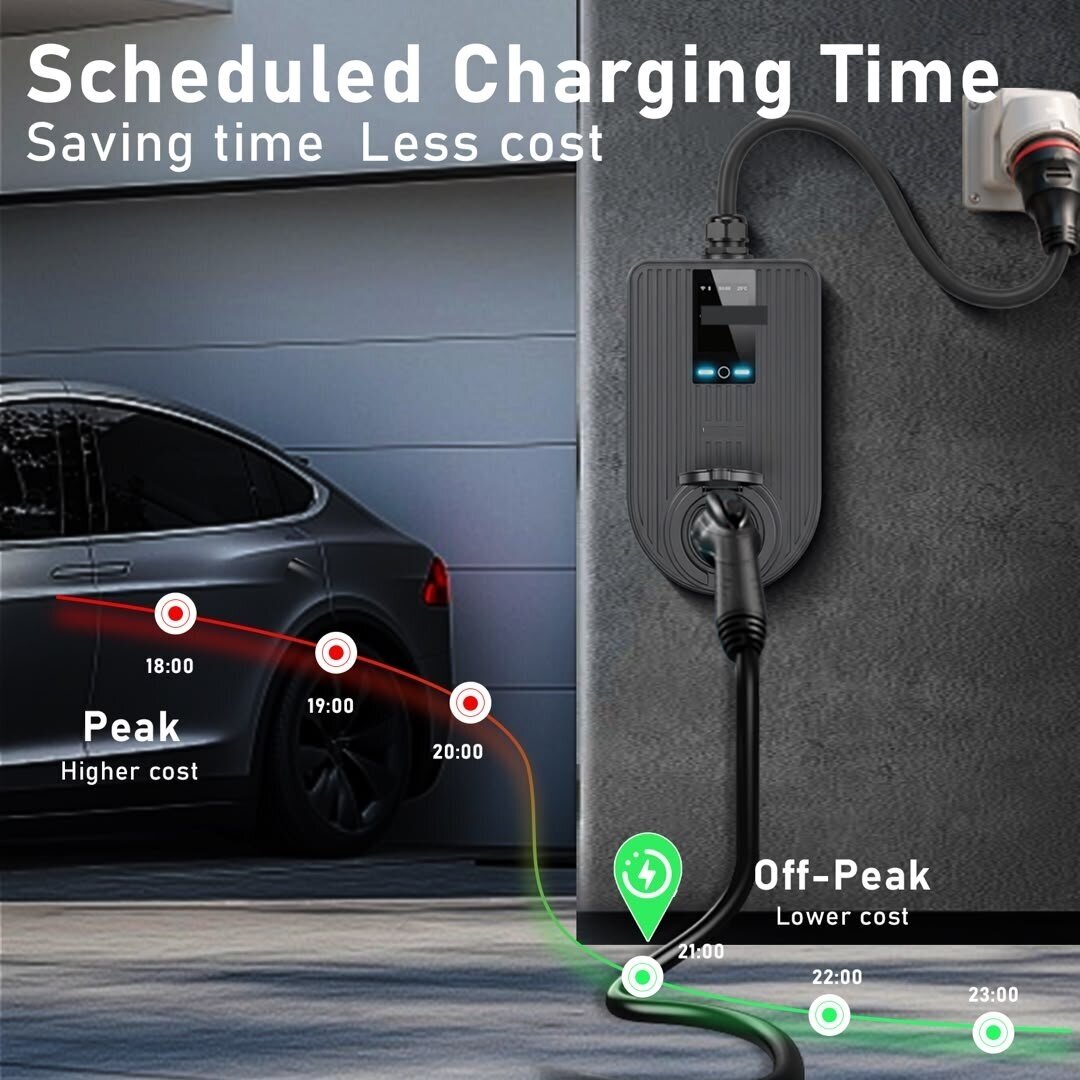

✅ Scheduling function via app

✅ Protection against overload, overvoltage, leakage current, and overheating

✅ Dust and moisture resistance – IP54

✅ Operating temperature from -30°C to +55°C

Convenient control

Technical specifications

Parameter                    Value
Power                          11 kW
Power supply                400 V AC (3-phase)
Current                        16 A
Frequency                    50 / 60 Hz
Connector                    Type 2
Display                        2.8" LCD
Authentication             RFID (ISO14443)
Connectivity                WiFi + Bluetooth
Protection class          IP54
Operating temperature  -30°C to +55°C
Weight                         3.4 kg
Package dimensions    460 × 350 × 165 mm

Technical specifications and functions comply with the manufacturer's specifications.

The large 2.8-inch LCD screen displays the following in real time:

charging power;
voltage;
current;
charging status;
other important information.

Using the mobile app, you can:

start or stop charging;
set charging time;
adjust charging current;
monitor charging process;
update the device firmware.

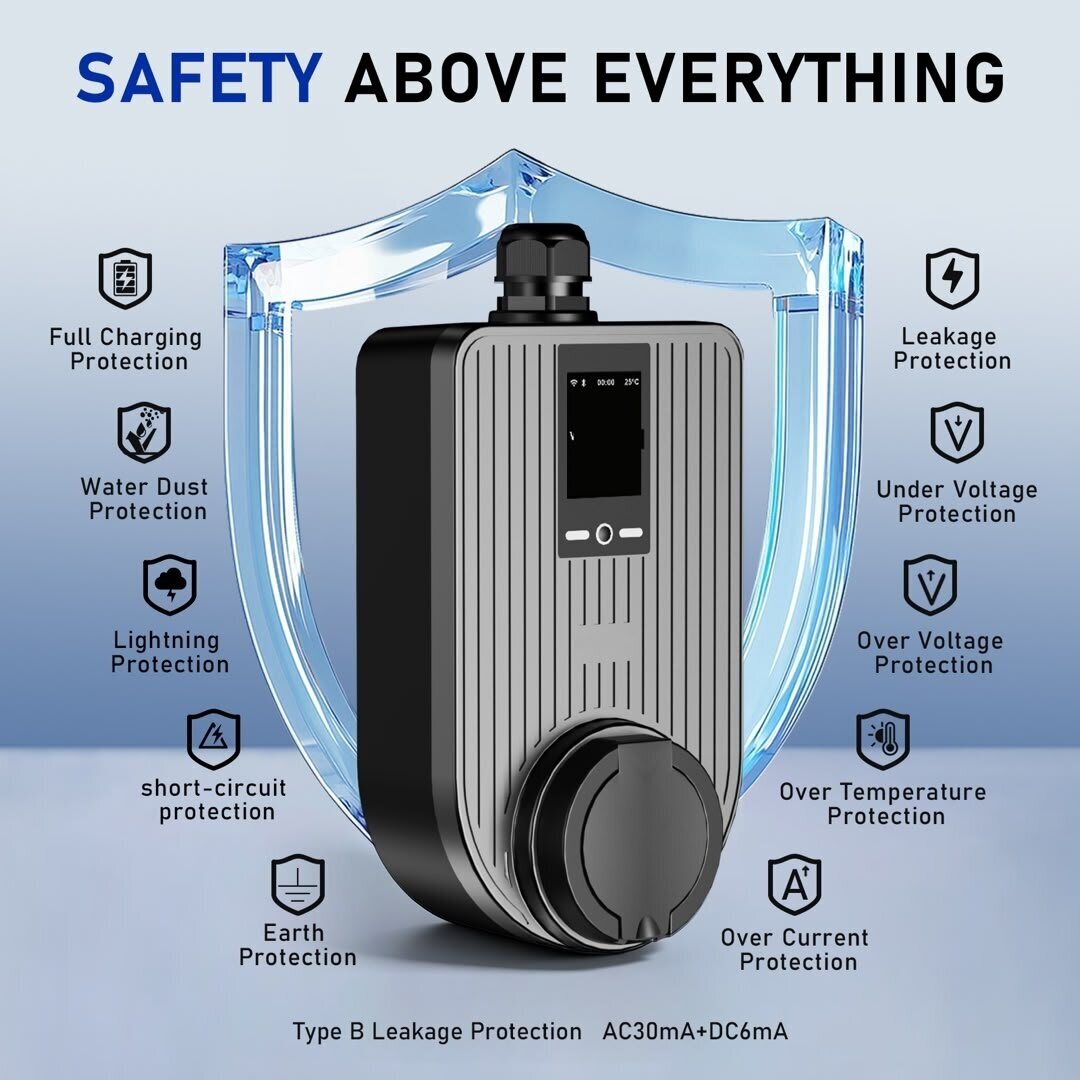

High level of safety

The station is equipped with key safety features:

overvoltage protection;
undervoltage protection;
overload protection;
overheating protection;
leakage current protection;
grounding monitoring;
lightning protection.

This ensures reliable and safe daily electric vehicle charging.

Compatibility

The charging station is compatible with most electric vehicles and plug-in hybrids sold in Europe that feature a Type 2 (IEC 61851) connector, including:

Tesla
Volkswagen
Audi
BMW
Mercedes-Benz
Volvo
Hyundai
Kia
Renault
Peugeot
Opel
Škoda
Cupra
Ford
Nissan
MG
BYD, and others.

Package contents

11 kW electric vehicle charging station
Mounting bracket
Mounting screws
User manual

Why choose this 11 kW charging station?

If you are looking for a reliable, modern, and smart electric vehicle charging station, this model is an excellent choice. WiFi control, Bluetooth connectivity, RFID authorization, a clear LCD screen, and advanced safety features ensure convenient daily use. Thanks to its compatibility with most electric vehicles used in Europe, this station is perfectly suited for private homes, businesses, and multi-apartment residential projects.
