Charging cable 480 V - Type 2
Free shipping on all orders worldwide
Guarantee safe & secure checkout
Charging cable 480 V - Type 2

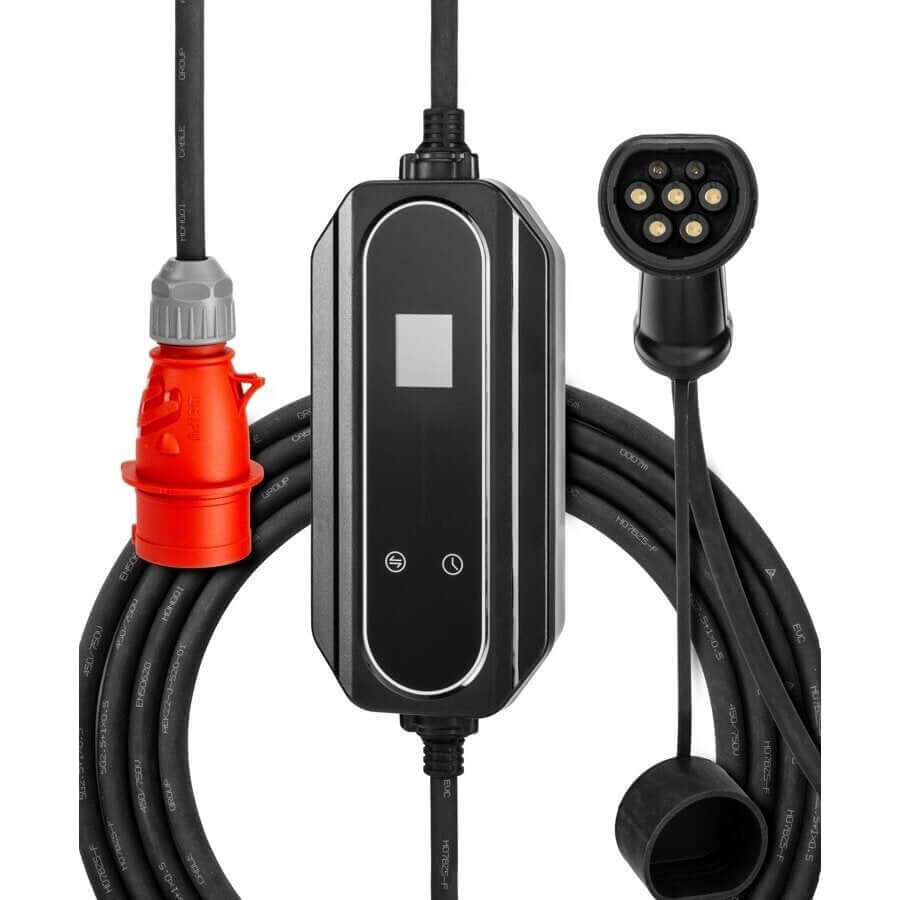

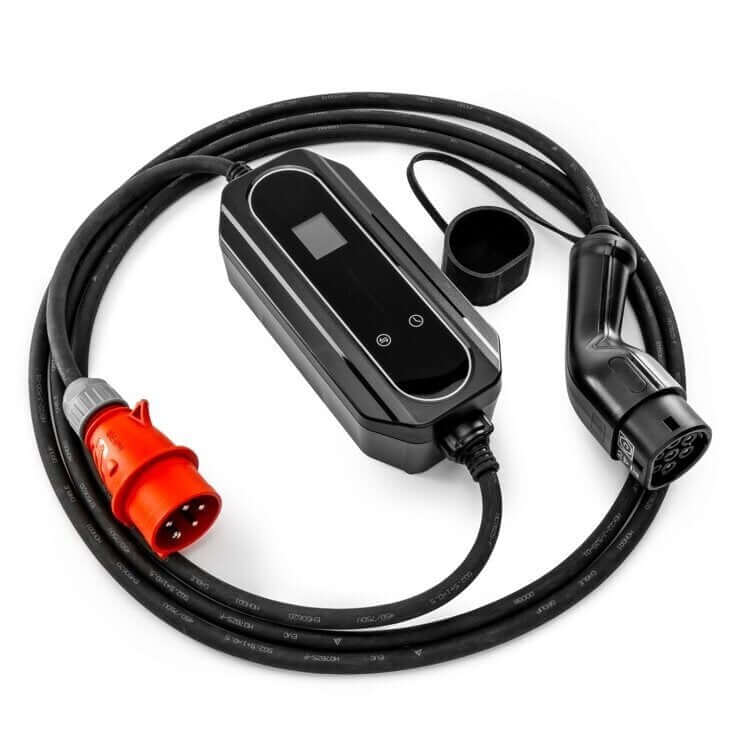

Electric Vehicle Charging Cable 32A or 16A, 3 Phases, from Three-Phase Socket to Type 2 Connector
Specifications:
- Power Plug: Type for three-phase connection
- Protection Rating: IP54 (operational)
- Contact Insert: Copper alloy with silver + thermoplastic top
- Input Power: 480V AC
- Output Power: 11 or 22 kW
- Total Length: 5 meters
- Mechanical Lifespan: Over 10,000 cycles (plug in/plug out)
- External Force Resistance: Can withstand a 1m drop and 2 tons of vehicle pressure
- Insulation Resistance: > 1000 MΩ (DC 500V)
- Terminal Temperature Rise: < 50K
- Housing Fire Resistance: UL94V-0 (Flame retardant rating)
This cable makes charging simple and safe!
Features:
- The display shows real-time charging status data (charging duration, charging power in kW, temperature, and kWh consumed).
This compact and portable electric vehicle charging cable is an ideal solution for economical charging at work, during trips, or at any location with a standard outlet.
Safety Features:
- Leakage protection
- Over-voltage or under-voltage protection
- Overload protection
- Lightning protection
- Thermal protection
Temperature Protection:
Charging is safe! If the control box temperature exceeds 85°C, the protection mechanism will stop the charging process. Charging will resume once the temperature drops to 65°C.

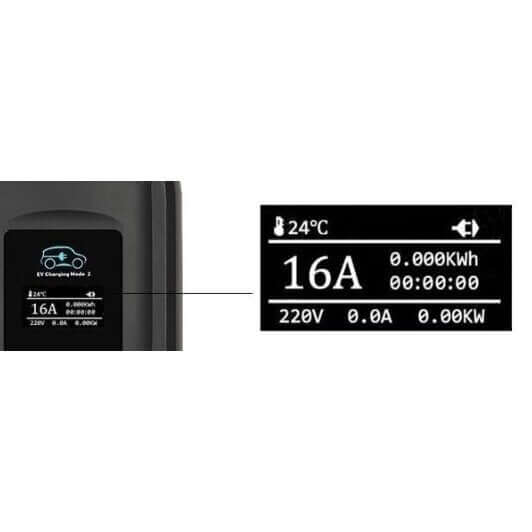

LED Display:
- Charging temperature
- Charging current
- Charging voltage
- Energy charged in kW/h
- Charging duration
- Set current (adjustable 10, 13, 16A, 32A)
- Charging speed in kW
Usage Instructions:
The blue button is used to adjust the current. To change the current, press the blue button while the power plug remains connected, and the Type 1 SAE J1772 (or Type 2) plug is disconnected. Once you set the desired current, connect it and start charging.

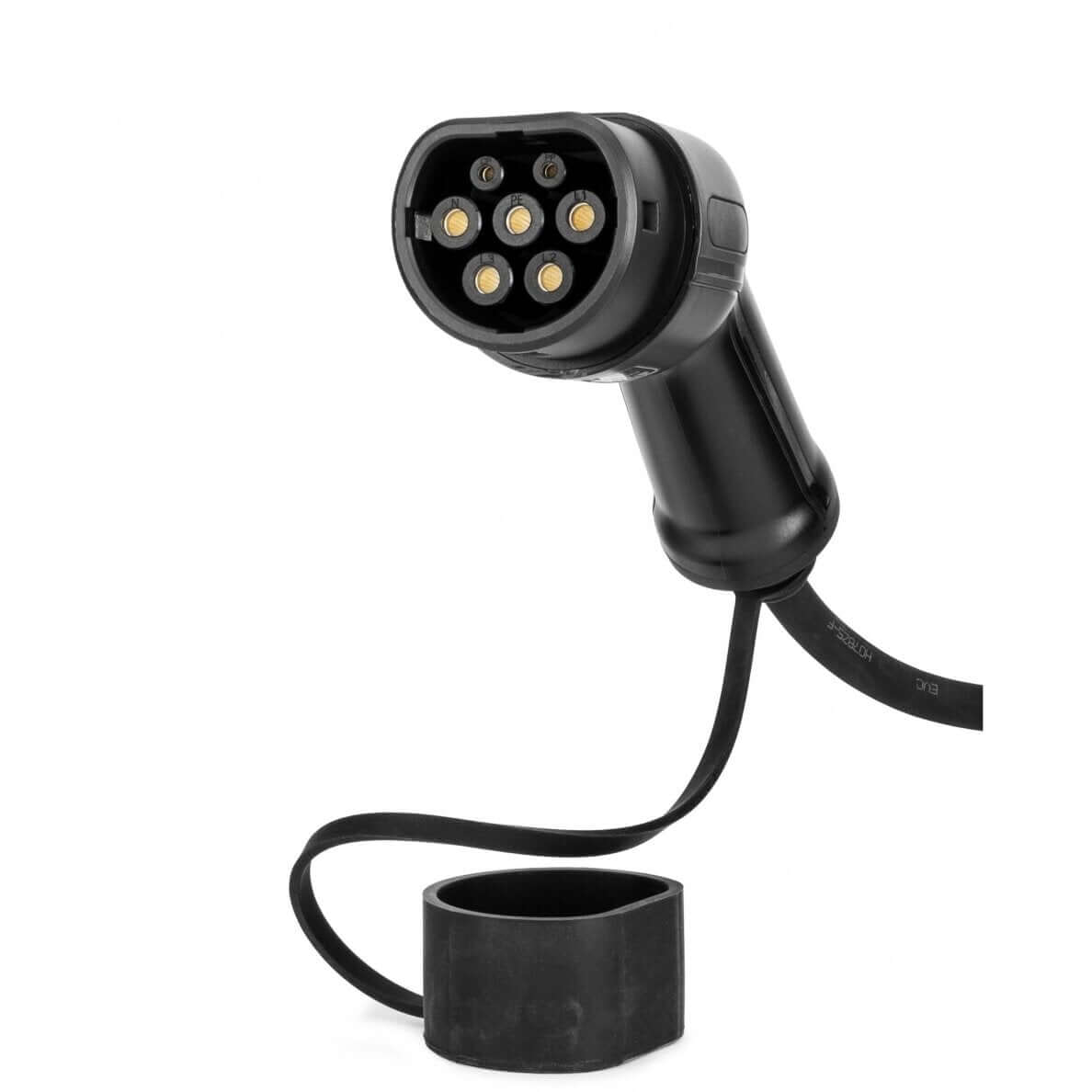

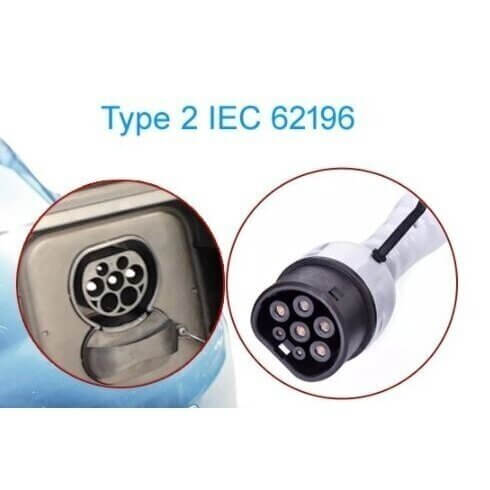

Type 2 Compatibility:
The Type 2 connector is the European standard used by electric vehicles manufactured in Europe, including:
- Volkswagen e-Up!
- Hyundai Ioniq
- Renault ZOE
- Nissan Leaf
- Volkswagen e-Golf
- BMW i3
This cable is perfect for safe and efficient electric vehicle charging.
