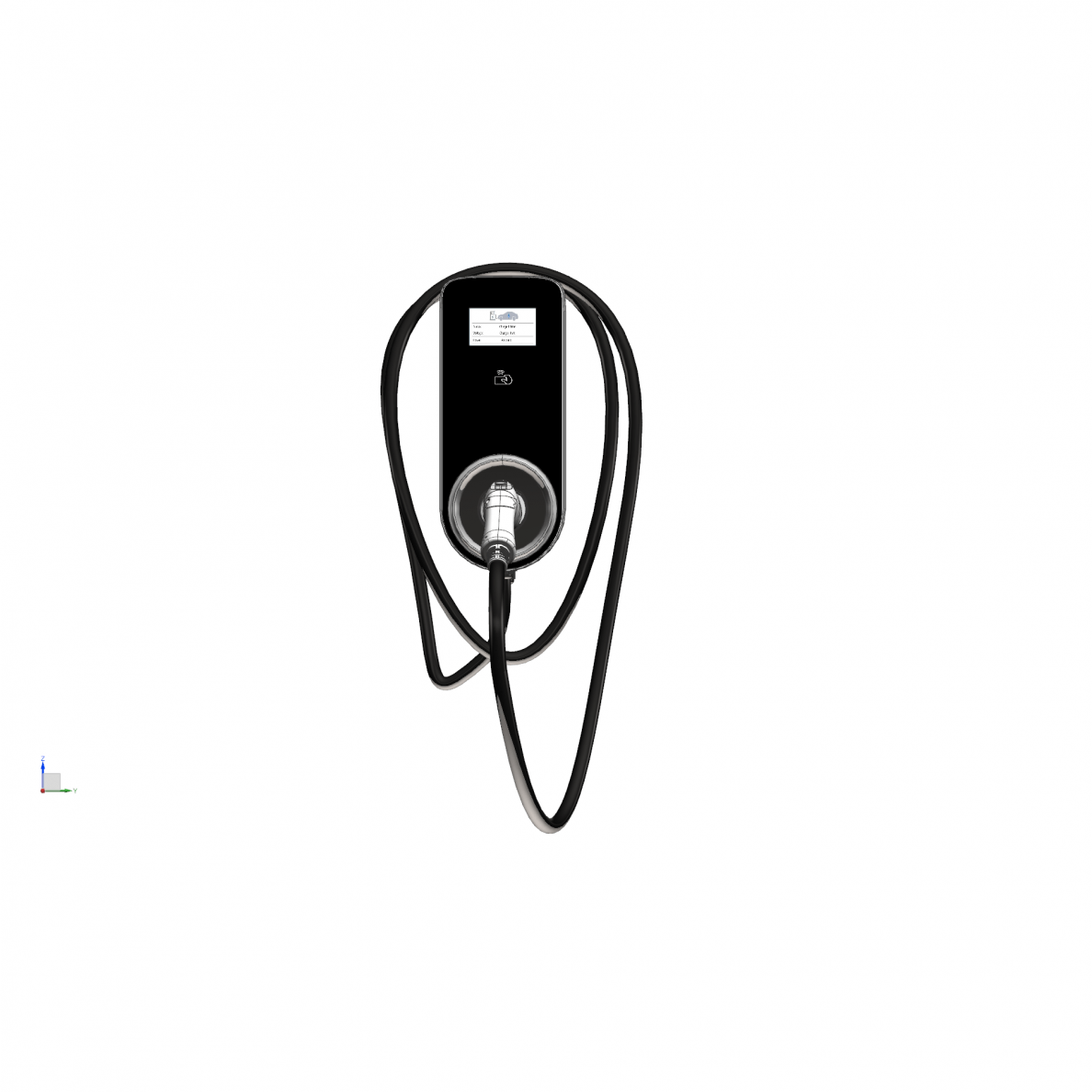

Charging station FSEV32 11kW (without cable)

Charging Station Model: JSAC23032A-E

Specifications:

• Input: Single-phase 32A, VAC 230V ±20%
• Input Frequency: 50Hz
• Output: Single-phase 32A, VAC 230V ±20%
• Maximum Power: 11kW
• Input Cable: 3 x 10mm²
• Connector: IEC62196, 250V 32A

Electrical Performance:

• Voltage Accuracy: <1% (Load current variation: 0%-100%)
• Current Accuracy: <1% (Rated output current: 20%-100%)
• Current Harmonics: <5% (Load: 50%-100%)
• Efficiency: >96%
• Power Factor: >0.99 (Load: 50%-100%)
• Output Ripple: <±0.5% (Load current change: 0%-100%, Output power variation: 85%-115%)

Physical Characteristics:

• Dimensions: H 179.5 mm x W 145.5 mm x D 421 mm
• Weight: Approximately 6-7 kg
• Housing Material: PC + ABS, flame-retardant and UL-94 VO rated
• Cable Length: 5m (optional 1m)

Interface:

• Display: Optional 4.3-inch LCD color screen, LED indicator light
• Mounting Method: Wall-mounted or stackable (optional)
• Routing Mode: Lower incoming line (L, N, PE), weapon line (L, N, PE, CP, PP)

Control and Communication:

• Control Mode: Plug and play, swipe card to start charging, optional 4G/Ethernet connectivity
• Charging Mode: Auto fill, constant power, fixed amount, fixed time (optional)
• Payment Methods: Card payment, online payment (optional)
• Communication Protocol: 4G / Ethernet (optional)
• Measurement Accuracy: Class 0.5

Safety Features:

• Connection Protocol: DIN70121 / ISO15118
• Communication Protocol: OCPP 1.6J
• Charging Interface Type: IEC 62196-2, Type 2
• Communication Standard: IEC 61851

Protection Functions:

• Overvoltage protection
• Undervoltage protection
• Overload protection
• Short circuit protection
• Ground fault protection
• Overheating protection
• Low temperature protection
• Insulation monitoring and protection
• Reverse polarity protection
• Lightning protection
• Emergency stop protection
• Leakage protection

Environmental Conditions:

• Use: Indoor / Outdoor
• Operating Temperature: -30°C to 50°C
• Storage Temperature: -40°C to 80°C
• Operating Humidity: 5% to 95%
• Operating Altitude: Up to 2000m

Protection Level:

• Ingress Protection Rating: IP55
• Cooling Method: Forced air cooling
• Noise Level: <65dB
• Safety Index: Insulation resistance >1MΩ, withstand voltage: 1500V for 1 minute
• MTBF: 30,000 hours
