CC2 charging nozzle

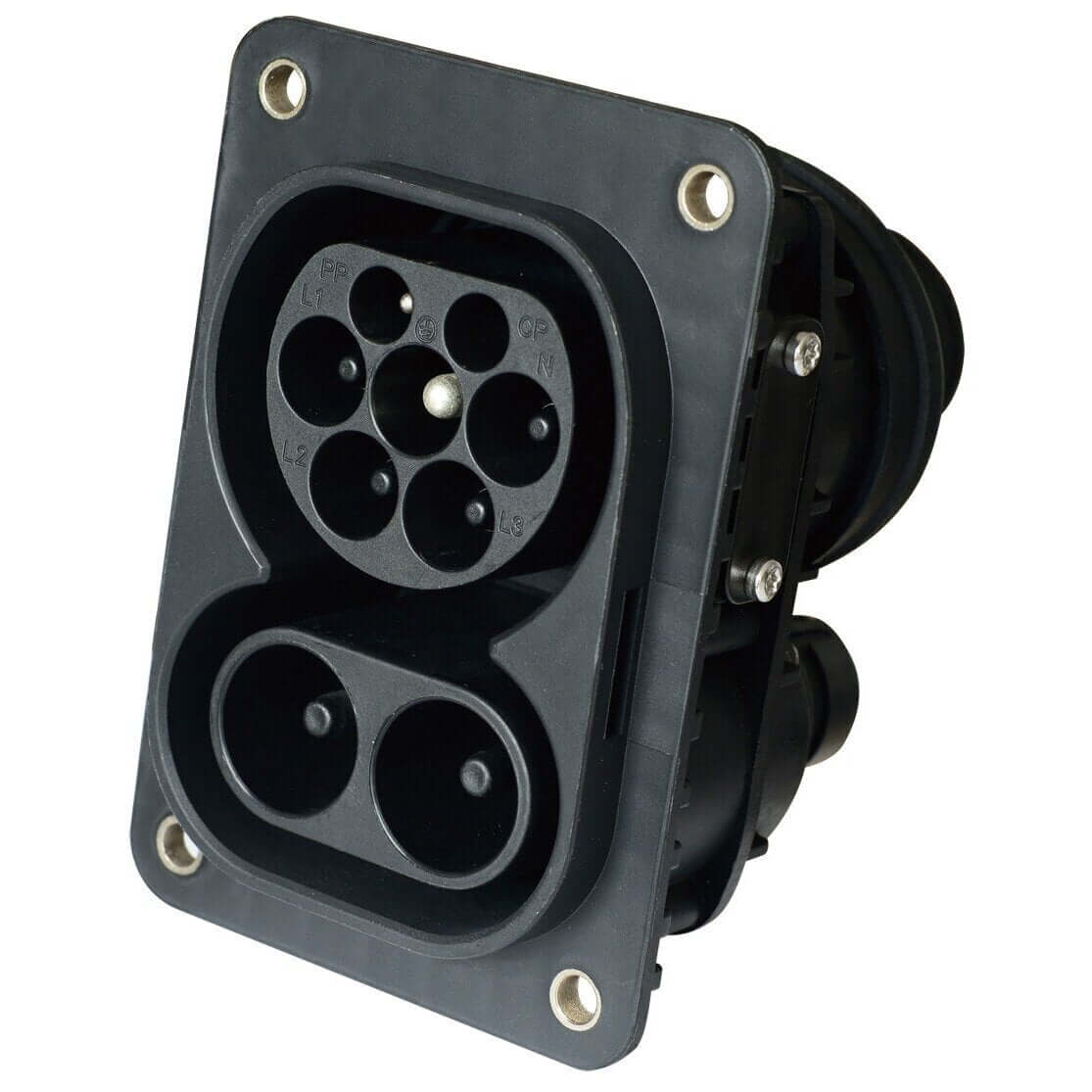

CCS Type 2 Plug Socket
Features:
- Standards Compliance: Meets 62196-3 IEC 2011 SHEET 3-Im standards.
- Compact Design: Features a support for back mounting.
- Safety Design: Protective pins insulated in the head structure to prevent accidental direct contact.
- Protection Class: Back protection rated IP55.
- DC Maximum Charging Power: 127.5kW.
- AC Maximum Charging Power: 41.4kW.
Electrical Performance:
- DC Input: 125A / 150A / 200A at a maximum of 1000V DC.
- AC Input: 16A / 32A / 63A at a maximum of 415VAC.
- DC Maximum Charging Power: 127.5kW.
- AC Maximum Charging Power: 41.5kW.
- Insulation Resistance: > 2000MΩ (DC1000V).
- Temperature Rise at Terminals: <50K.
- Withstand Voltage: 3200V.
- Contact Resistance: 0.5mΩ max.
Mechanical Properties:
- Mechanical Lifespan: Connect/disconnect without load > 10,000 times.
- Insertion Force: > 45N < 80N.
- External Force Impact: Able to withstand a drop test of 1m and 2T vehicle overload.
- Housing Material: Thermoplastic, UL94-0 fire retardant.
- Contact Insert Material: Copper alloy with thermoplastic cover.
Certifications:
- Certified: CE and TUV.
Environmental Efficiency:
- Operating Temperature Range: -30°C to +50°C.
This CCS Type 2 plug socket is designed for high-performance electric vehicle charging, ensuring safety, durability, and compliance with industry standards.
