EcoPillar 2x22kW charging station with OCPP protocol, Wi-fi control
Product Description:
Overview: The EcoPillar 2x22 kW Electric Vehicle Charging Station is designed for commercial use, featuring two Type 2 sockets and supporting the OCPP protocol. It allows for seamless management via the X Smart b EVSE app, making it ideal for businesses looking to provide convenient charging solutions for their customers.
Key Features:
- Dual Charging Capability: Two Type 2 sockets deliver a total charging power of 44 kW (2x 22 kW), accommodating multiple vehicles simultaneously.
- Smart Management: Wi-Fi connectivity and app control through the X Smart b EVSE app for efficient usage tracking and management.
- Integrated with Stuart App: Enables easy payment collection from users looking to charge their vehicles.
Technical Specifications:
- Net Weight: 17.5 kg
- Operating Temperature Range: -30°C to +50°C

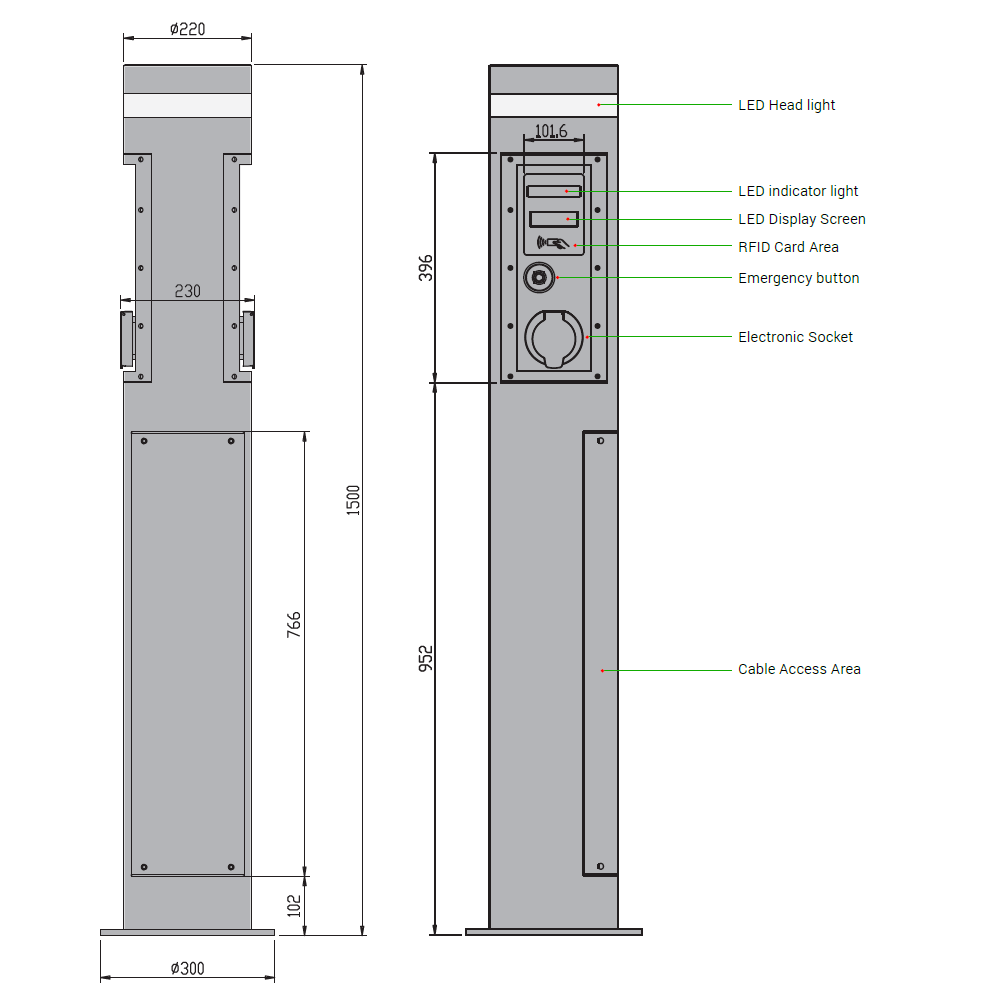

- Dimensions: Height: 1.5 m, Width: 0.22 m
- Charging Power: Adjustable from 8A to 32A (7 kW to 22 kW)
- IP Rating: IP65 for dust and water resistance
- Connectivity: Wi-Fi, Bluetooth, 4G, Ethernet (RJ45)
- Charging Protocol: OCPP 1.6 for compatibility with various network systems
- 4G Module: Optional connectivity for enhanced data transmission
- RFID Reader: For secure user access and payment options

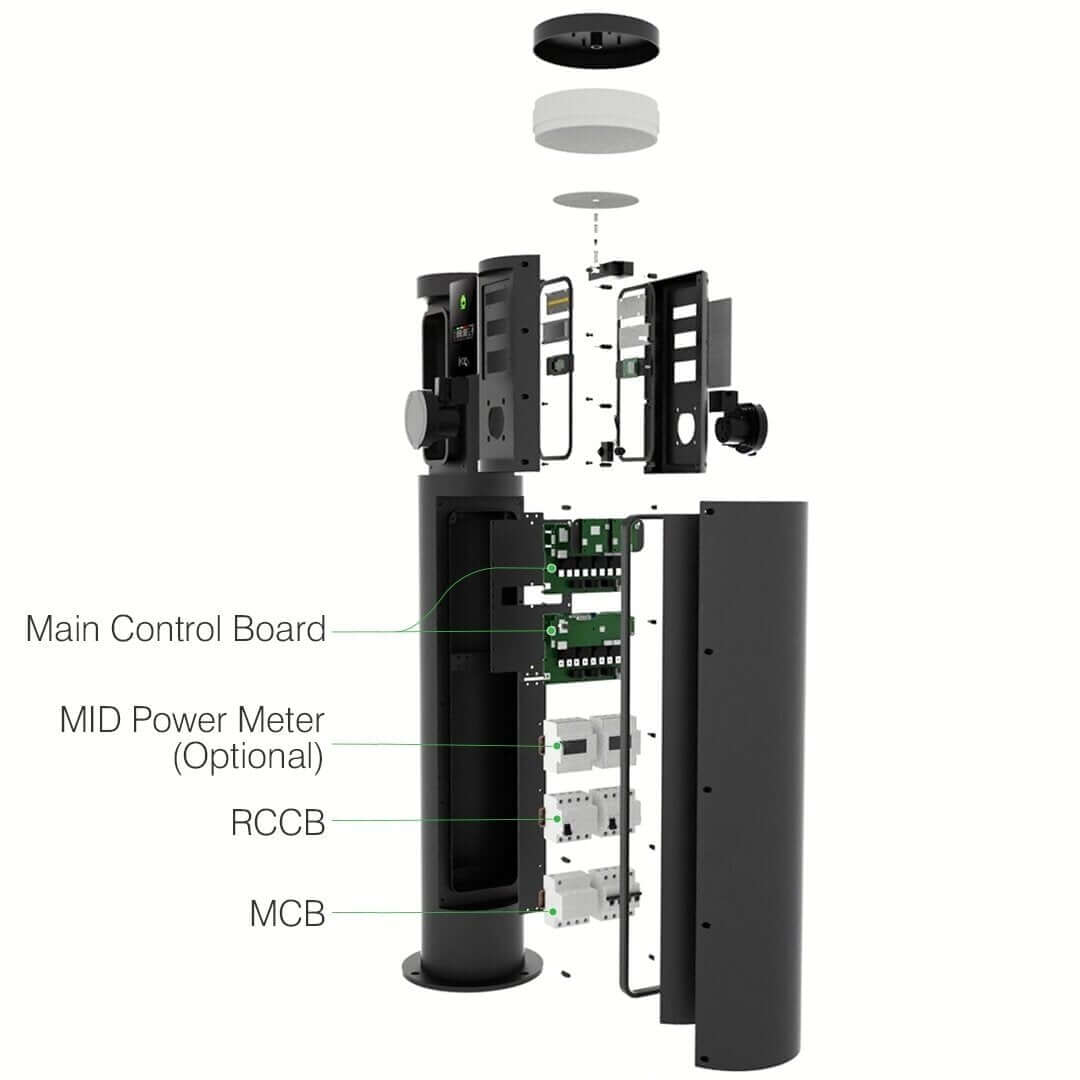

Construction and Safety:
- Aluminum Housing: Coated with a special anti-corrosive finish for durability.
-
Integrated Safety Features:
- Output voltage and current monitoring
- Temperature monitoring
- Input voltage monitoring
- Integrated RCD (30 mA AC / 6 mA DC)
- Ground fault detection
- Shock resistance (IK10)
Certifications:
- CE & UKCA compliant
- Compliant with directives 2014/53/EU and 2011/65/EU
- Meets IEC/EN 61851-1 and 61851-21 standards
Warranty:
- Standard Warranty: 24 months with options for extended coverage.
Upgrade your commercial charging capabilities with the EcoPillar 2x22 kW Electric Vehicle Charging Station, offering reliable performance and advanced management features for a seamless user experience.
